Carling Technologies 3G-OTH-35963 — Technical Specifications

Name: Carling Technologies 3G-OTH-35963 CARLING TECHNOLOGIES Lighted Rocker Switch: 2 Positions, SPST, On/Off, Red (MPN V1D1B60B-ARC00-000). Key specifications — DC Contact Rating: 20 A @ 12 V; Horsepower: 1/2 hp @ 125 to 250 V; NEMA Enclosure Rating: No Enclosure; Operator Illumination: Illuminated; Switch Color: Red; Terminal Connection Type: Quick-Connect Tab Terminals; Includes Lamp Module: No Lamp Module Included; Includes Lens: Lens Included.
Brand: Carling Technologies

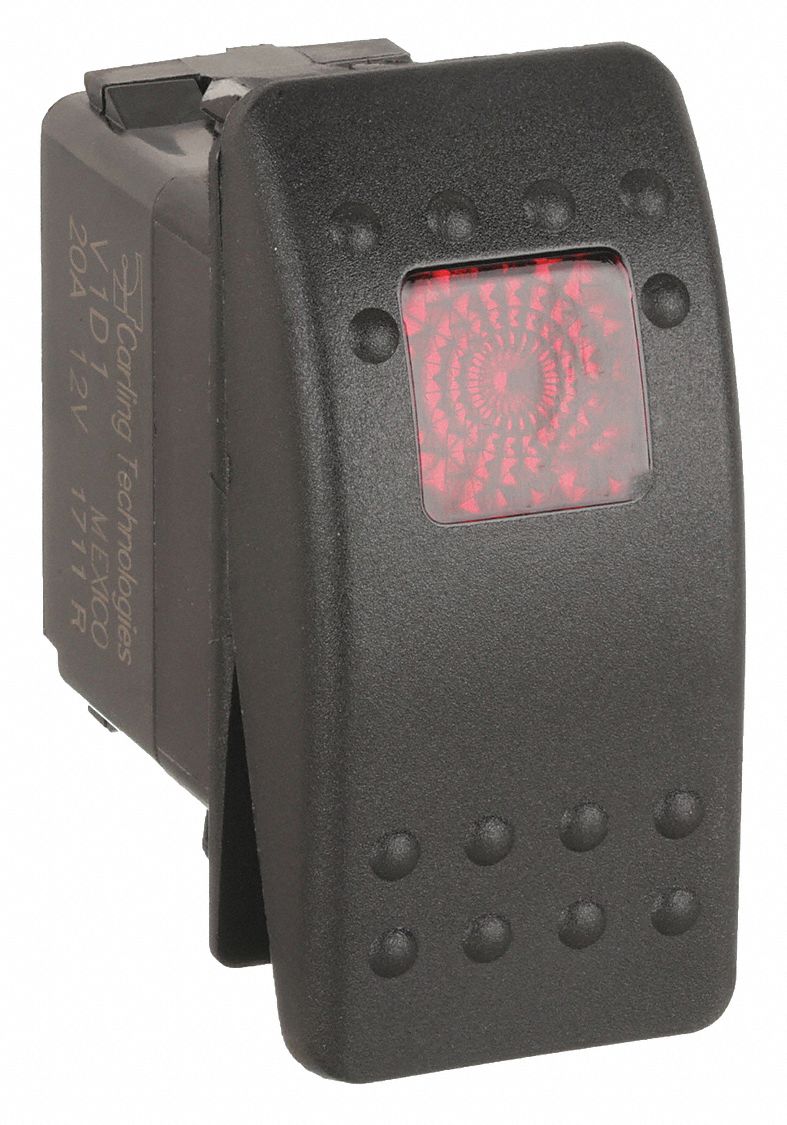

The CARLING TECHNOLOGIES Lighted Rocker Switch is an environmentally sealed rocker switch from the V Series, featuring a 2-position SPST On/Off configuration with a red illuminated operator. It has a DC contact rating of 20 A @ 12 V and a horsepower rating of 1/2 hp @ 125 to 250 V, with quick-connect tab terminals and a lens included.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CARLING TECHNOLOGIES
Series	V
Horsepower	1/2 hp @ 125 to 250 V
Switch Color	Red
Includes Lens	Lens Included
Displayed Brand	CARLING TECHNOLOGIES
DC Contact Rating	20 A @ 12 V
Includes Lamp Module	No Lamp Module Included
NEMA Enclosure Rating	No Enclosure
Operator Illumination	Illuminated
Manufacturer Part Number	V1D1B60B-ARC00-000
Terminal Connection Type	Quick-Connect Tab Terminals
