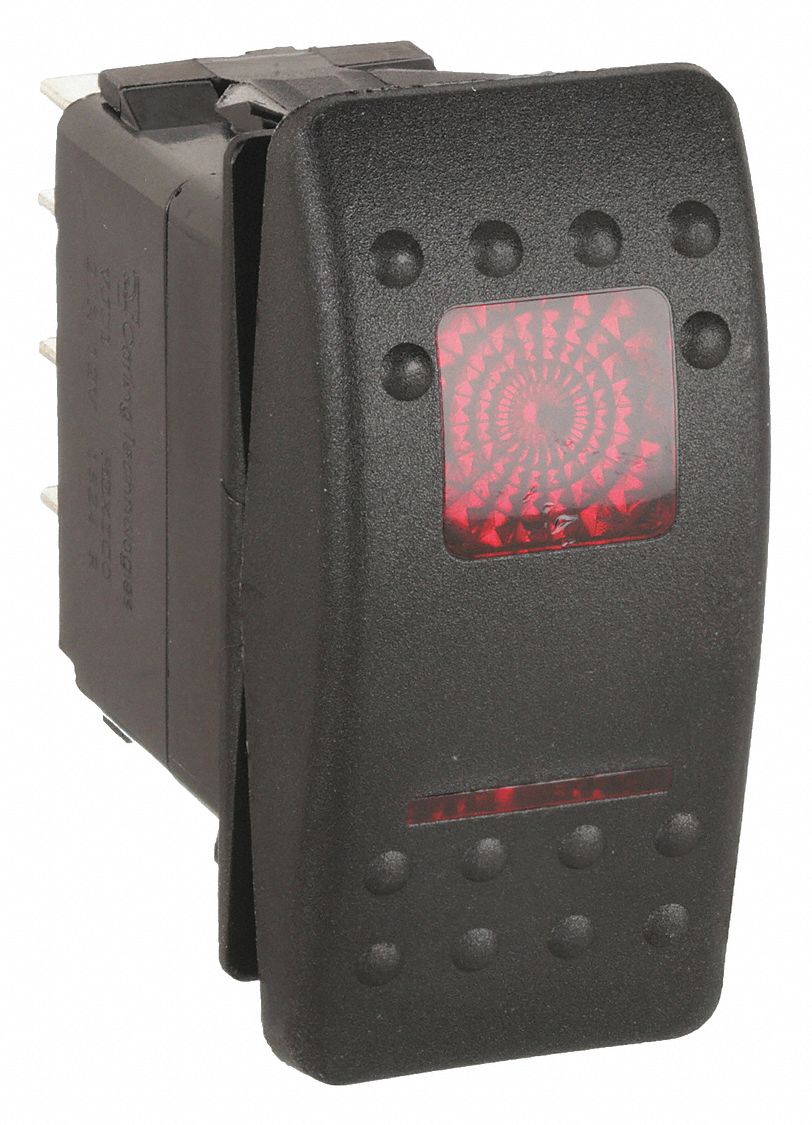

Carling Technologies 3G-OTH-35997 — Technical Specifications

Name: Carling Technologies 3G-OTH-35997 CARLING TECHNOLOGIES Lighted Rocker Switch: 3 Positions, DPDT, On/Off/On, Red (MPN VJD1D66B-ASC00-000). Key specifications — AC Contact Rating: 20A 12V; DC Contact Rating: 20 A @ 12 V; Horsepower: 1/2 hp @ 125 to 250 V; NEMA Enclosure Rating: No Enclosure; Operator Illumination: Illuminated; Switch Color: Red; Terminal Connection Type: Quick-Connect Tab Terminals; Includes Lamp Module: No Lamp Module Included.
Brand: Carling Technologies

The CARLING TECHNOLOGIES Lighted Rocker Switch (Series V) is a DPDT, 3-position (On/Off/On) environmentally sealed rocker switch with red illumination. It features AC and DC contact ratings of 20 A @ 12 V and a horsepower rating of 1/2 hp @ 125 to 250 V. The switch includes a lens, uses quick-connect tab terminals, and has no lamp module or NEMA enclosure rating.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CARLING TECHNOLOGIES
Series	V
Horsepower	1/2 hp @ 125 to 250 V
Switch Color	Red
Includes Lens	Lens Included
Displayed Brand	CARLING TECHNOLOGIES
AC Contact Rating	20A 12V
DC Contact Rating	20 A @ 12 V
Includes Lamp Module	No Lamp Module Included
NEMA Enclosure Rating	No Enclosure
Operator Illumination	Illuminated
Manufacturer Part Number	VJD1D66B-ASC00-000
Terminal Connection Type	Quick-Connect Tab Terminals
