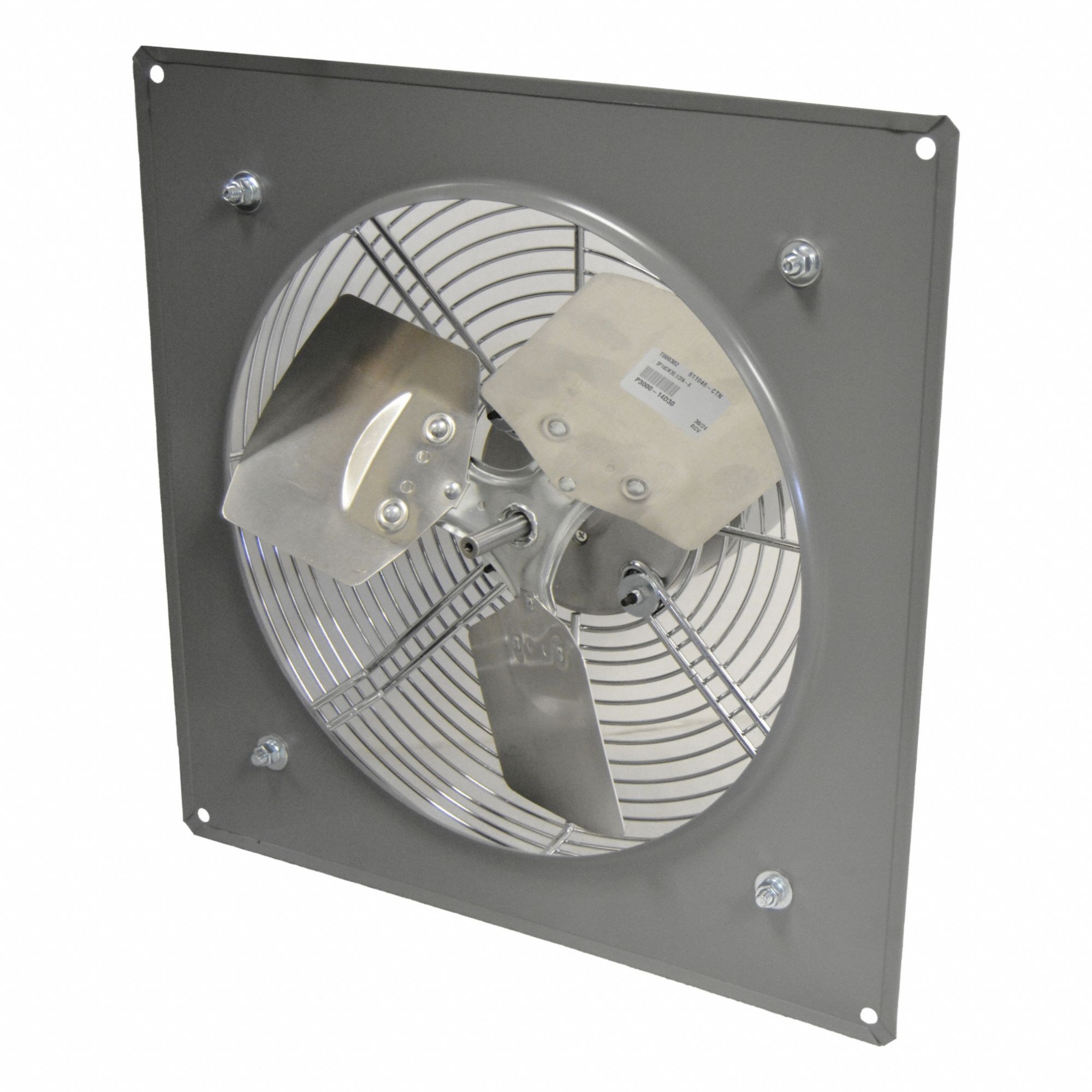

Canarm 3G-OTH-80445 — Technical Specifications
The CANARM Exhaust Fan: Direct Drive (SKU 844HW5, MPN P14-1V) is a standard direct-drive panel exhaust fan with a 14-inch galvanized steel blade, 1/3 hp motor, and 2,170 cfm airflow. It operates on 115V AC single-phase power with a totally enclosed air-over motor enclosure and variable speed control. The powder-coated steel frame includes intake guards, and the unit is supplied fully assembled.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115V |
| Type | 1/3 hp, 2,170 cfm, 1 ph, Totally Enclosed |
| Blade | 14 in |
| Brand | CANARM |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | Single Phase |
| Frame Finish | Powder Coated |
| Blade Material | Galvanized Steel |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Number Of Speeds | Variable |
| Nameplate Voltage | 115V AC |
| Guard Type Subheads | With Intake Guards |
| Manufacturer Part Number | P14-1V |
