Canarm 3G-OTH-81101 — Technical Specifications

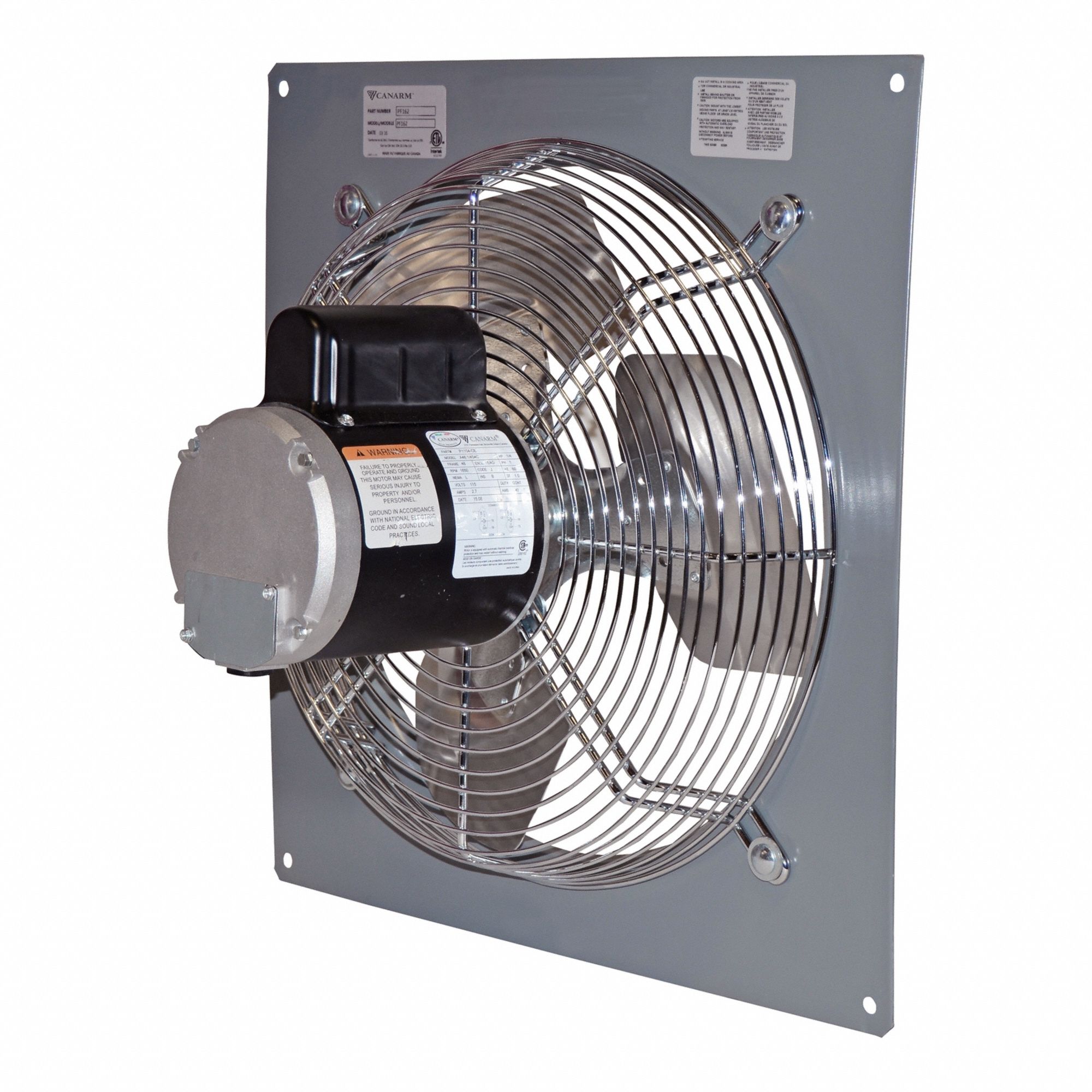

The CANARM P24-1M is a standard direct-drive panel exhaust fan with a 24-inch galvanized steel blade, 1/3 hp, and 5,520 cfm. It features a powder-coated steel frame, a totally enclosed 3-phase motor rated at 230/460V AC, and includes intake guards. This assembled unit operates at a single speed and is designed for industrial ventilation applications.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | 1/3 hp, 5,520 cfm, 3 ph, Totally Enclosed |
| Blade | 24 in |
| Brand | CANARM |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | 3-Phase |
| Frame Finish | Powder Coated |
| Blade Material | Galvanized Steel |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Number Of Speeds | 1 |
| Nameplate Voltage | 230/460V AC |
| Guard Type Subheads | With Intake Guards |
| Manufacturer Part Number | P24-1M |
