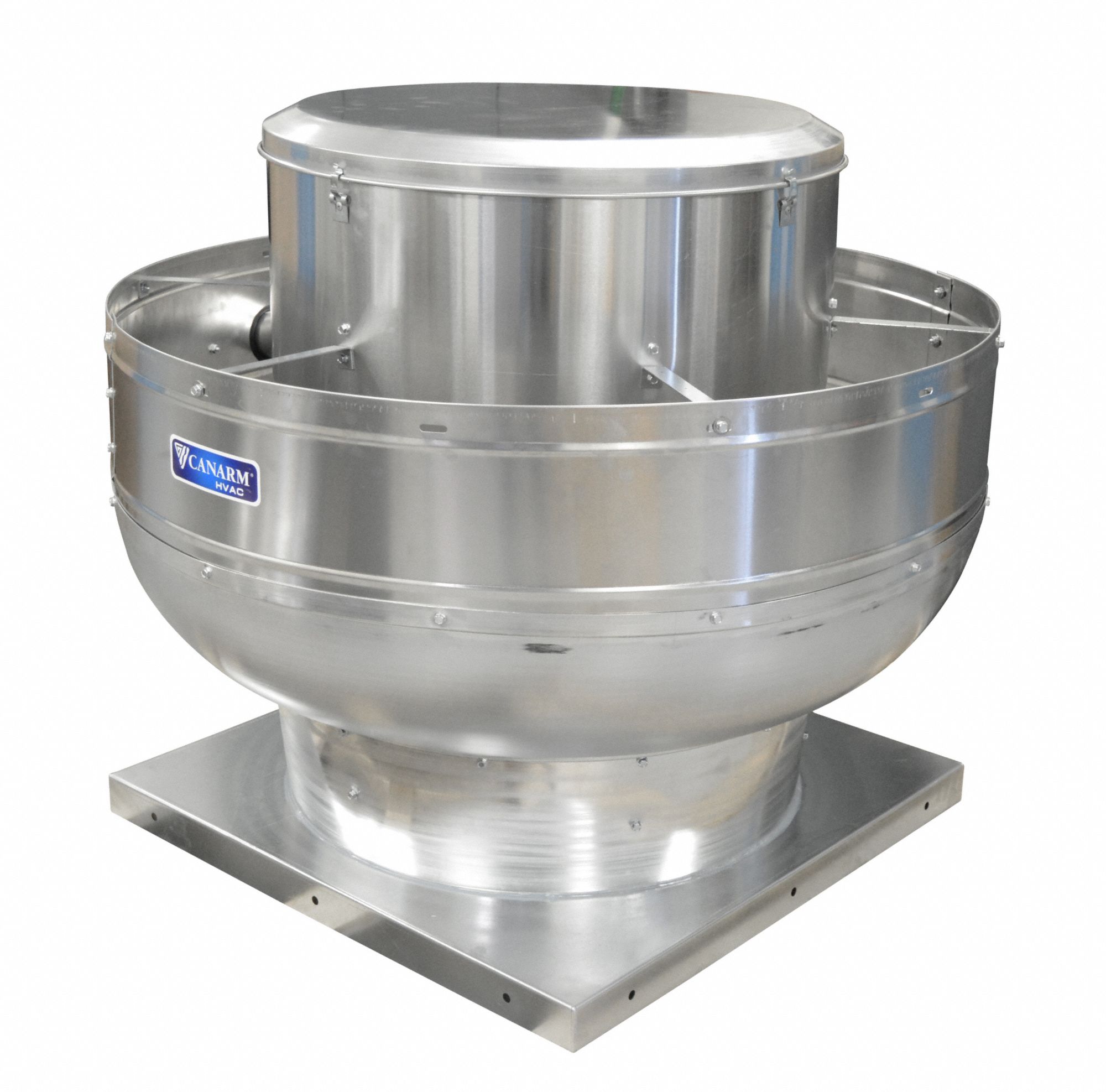

Canarm 3G-OTH-82887 — Technical Specifications
The CANARM Upblast Exhauster: Belt Drive (SKU 801MZ0, MPN ALX245UBT30300M) is a wall-mounted kitchen air belt-drive fan with a square base, assembled and including a drive package. It features an Open Dripproof motor with a 230/460V AC nameplate voltage, a single speed, and a standard motor efficiency (not high-efficiency). The unit is designed for high-static pressure applications, with an exhaust airflow range of 5,000 to 10,000 cfm at both 0.000 in SP and 0.500 in SP, and a 24 1/2 in wheel delivering 6,913 cfm with a 3 hp, 3-phase motor.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 6,913 cfm, ODP, 3 hp, 3-ph |
| Brand | CANARM |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Mounting Location | Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX245UBT30300M |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | Yes |
