Canarm 3G-OTH-82905 — Technical Specifications

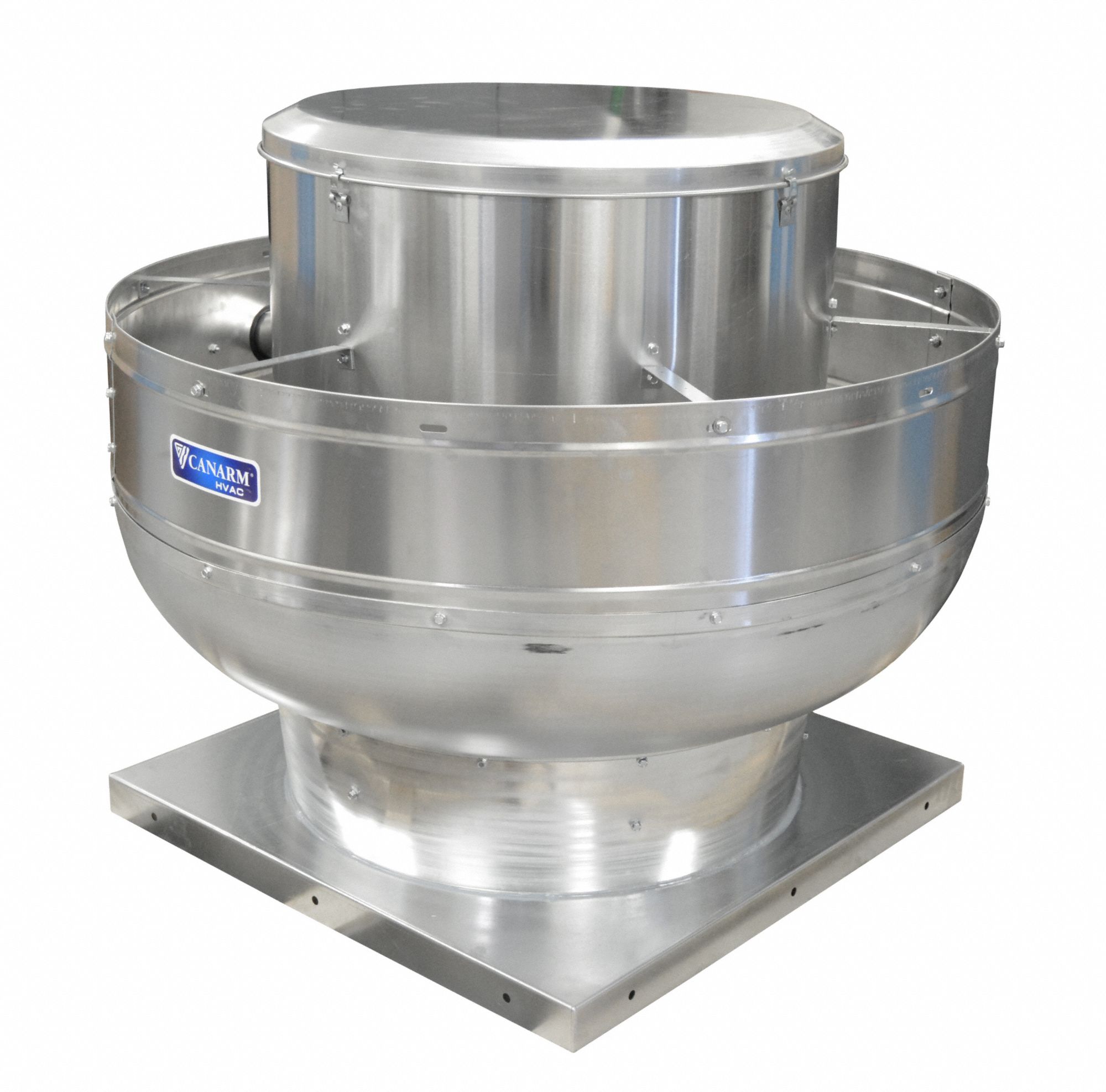

The CANARM Upblast Exhauster is a belt-drive kitchen air fan with a square base, assembled and wall-mounted. It includes a drive package, an Open Dripproof motor, and a 24 1/2 in wheel, delivering 6,186 cfm with a 2 hp, 3-phase motor at 230/460V AC. Designed for high-static pressure applications, it offers a single speed and standard motor efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 6,186 cfm, ODP, 2 hp, 3-ph |
| Brand | CANARM |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Mounting Location | Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX245UBT30200M |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | Yes |
