Canarm 3G-OTH-83065 — Technical Specifications

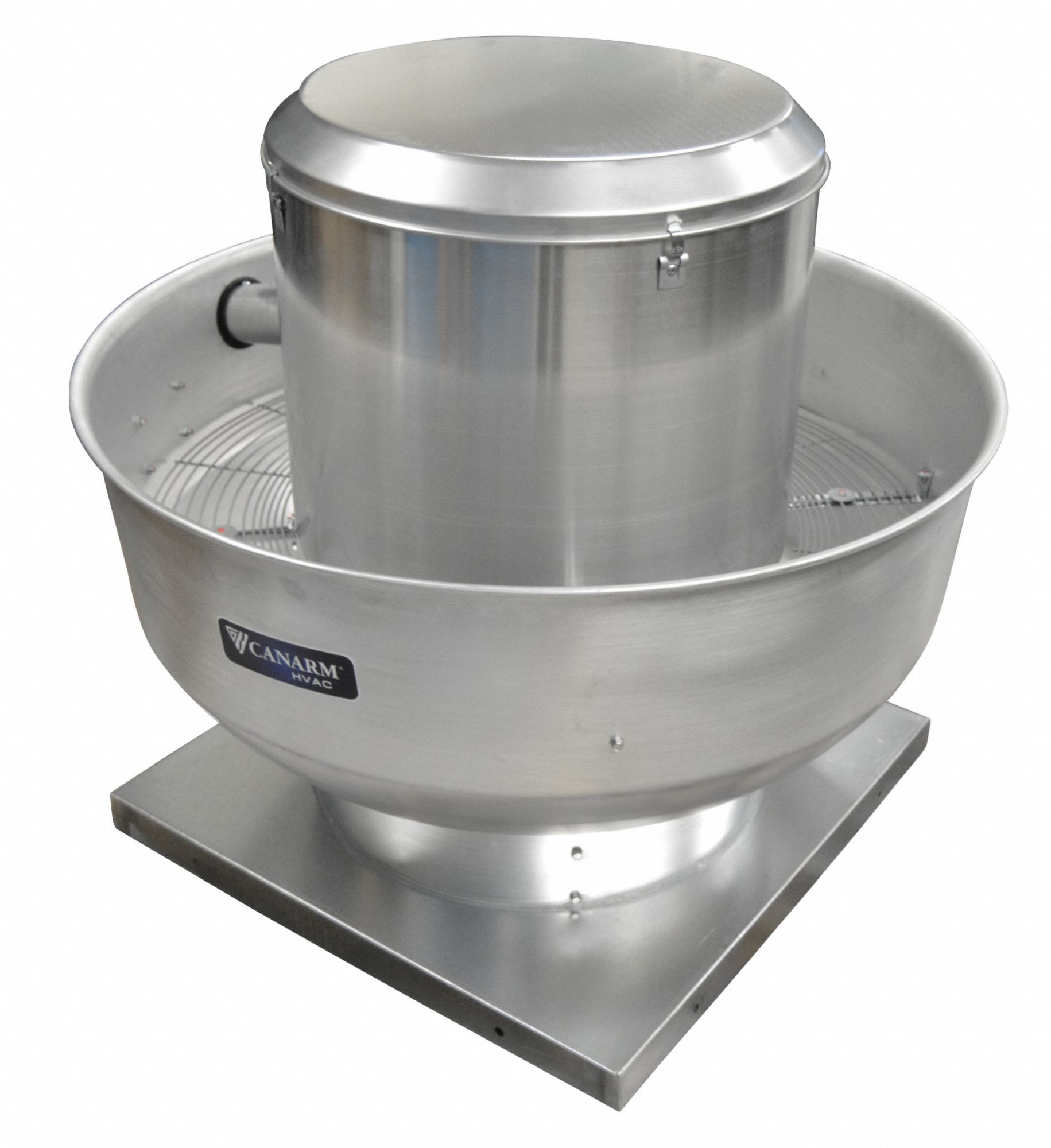

The CANARM Upblast Exhauster: Belt Drive (SKU 801MY0, MPN ALX180UBT30100M) is a kitchen air belt-drive fan with a square base, assembled and wall-mounted. It includes a drive package, an Open Dripproof motor with 1 hp, 1 speed, and nameplate voltage of 230/460V AC. The unit delivers exhaust airflow ranges of 2,000 to 4,999 cfm at both 0.000 in SP and 0.500 in SP, and is designed for high-static pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 3,504 cfm, ODP, 1 hp, 3-ph |
| Brand | CANARM |
| Wheel | 18 1/4 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Mounting Location | Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX180UBT30100M |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | Yes |
