Canarm 3G-OTH-80157 — Technical Specifications

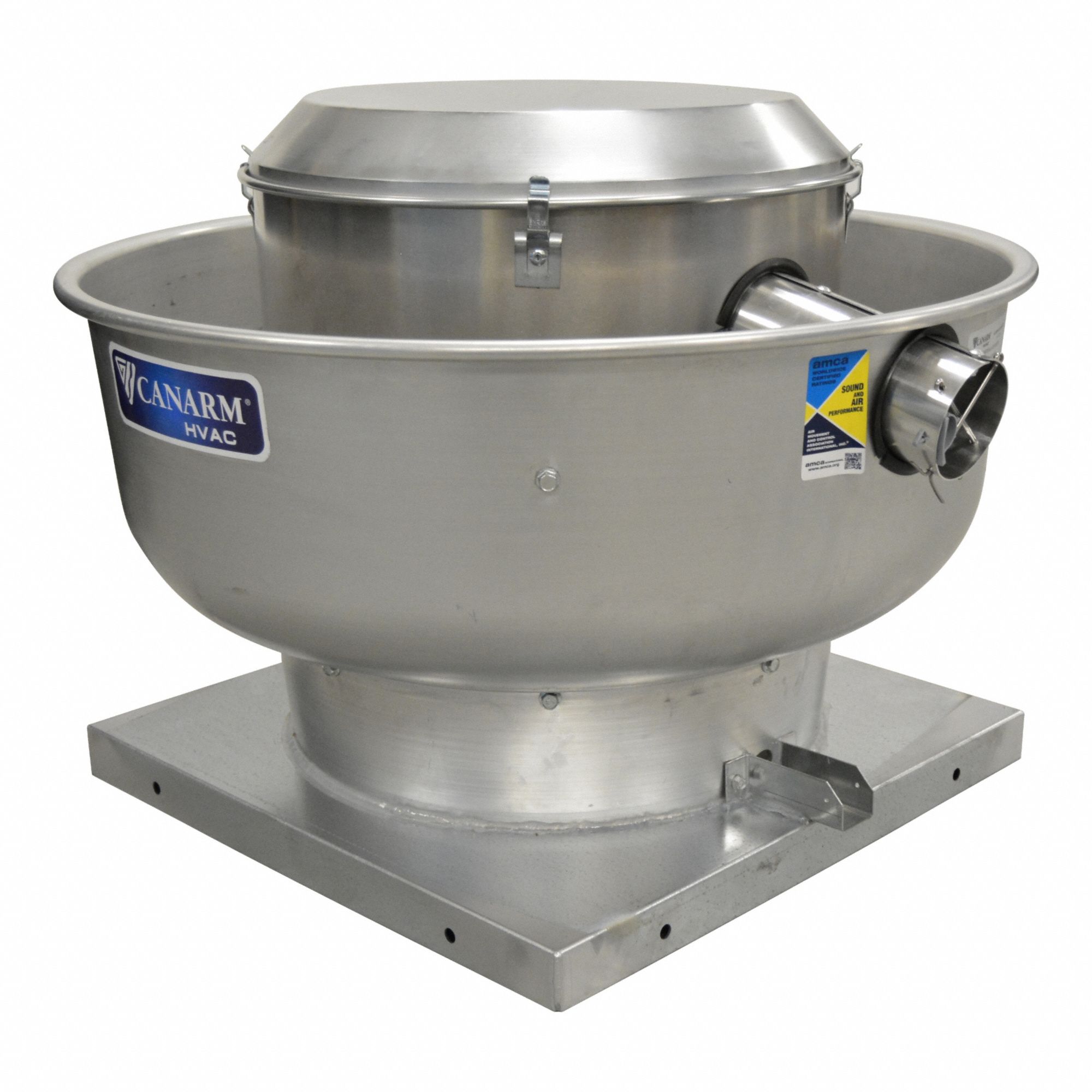

The CANARM Upblast Exhauster: Direct Drive (SKU 801MU7, MPN ALX135-UD075EC) is a kitchen air direct-drive fan designed for roof and wall mounting. It features an electronically commutated motor with an Open Dripproof enclosure, a square base, and a variable-speed drive package, operating at 115/208-230V AC. The unit delivers exhaust airflow ranging from 2,000 to 4,999 cfm at 0.000 in SP and 0 to 1,999 cfm at 0.500 in SP, and is suitable for high-static-pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 2,100 cfm, ODP, 3/4 hp, 1-ph |
| Brand | CANARM |
| Wheel | 13 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Motor Type | Electronically Commutated |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | High-Efficiency Motor |
| Number Of Speeds | Variable |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | Yes |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX135-UD075EC |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 0 to 1,999 cfm |
| For High-Static Pressure Applications | Yes |
