Canarm 3G-OTH-79073 — Technical Specifications

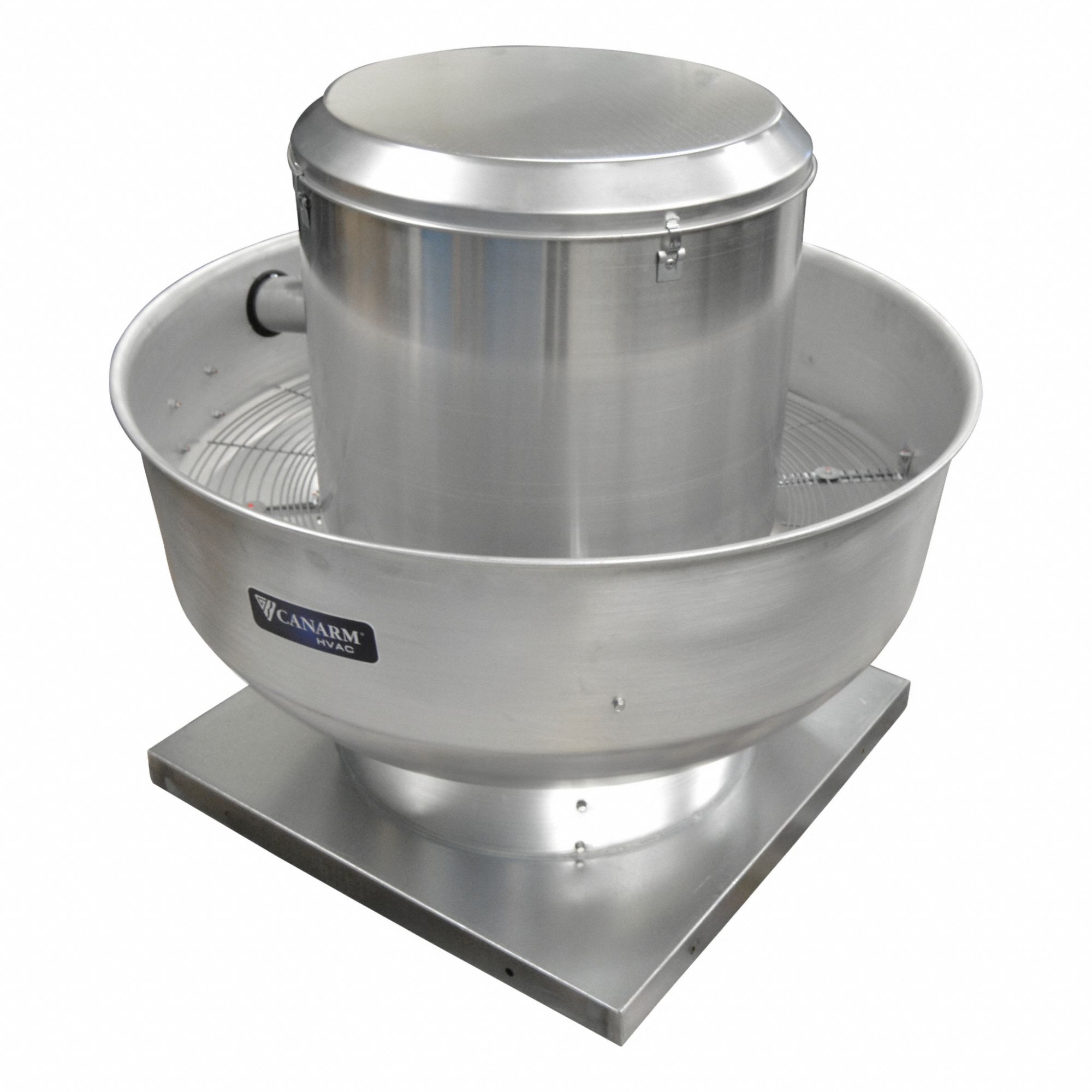

The CANARM Upblast Exhaust Fan: Belt Drive (SKU 394VT4, MPN ALX165UB30150M) is a kitchen air high-pressure belt-drive fan without drive, assembled with a square base and includes a drive package. It features an open dripproof motor, variable speed, and a nameplate voltage of 230/460V AC, with exhaust airflow ranges of 2,000 to 4,999 cfm at both 0.000 in SP and 0.500 in SP. This wall-mounted unit is not for high-static pressure applications and does not have a high-efficiency motor.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 3,060 cfm, ODP, 1 1/2 hp |
| Brand | CANARM |
| Wheel | 16 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | Variable |
| Mounting Location | Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX165UB30150M |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
