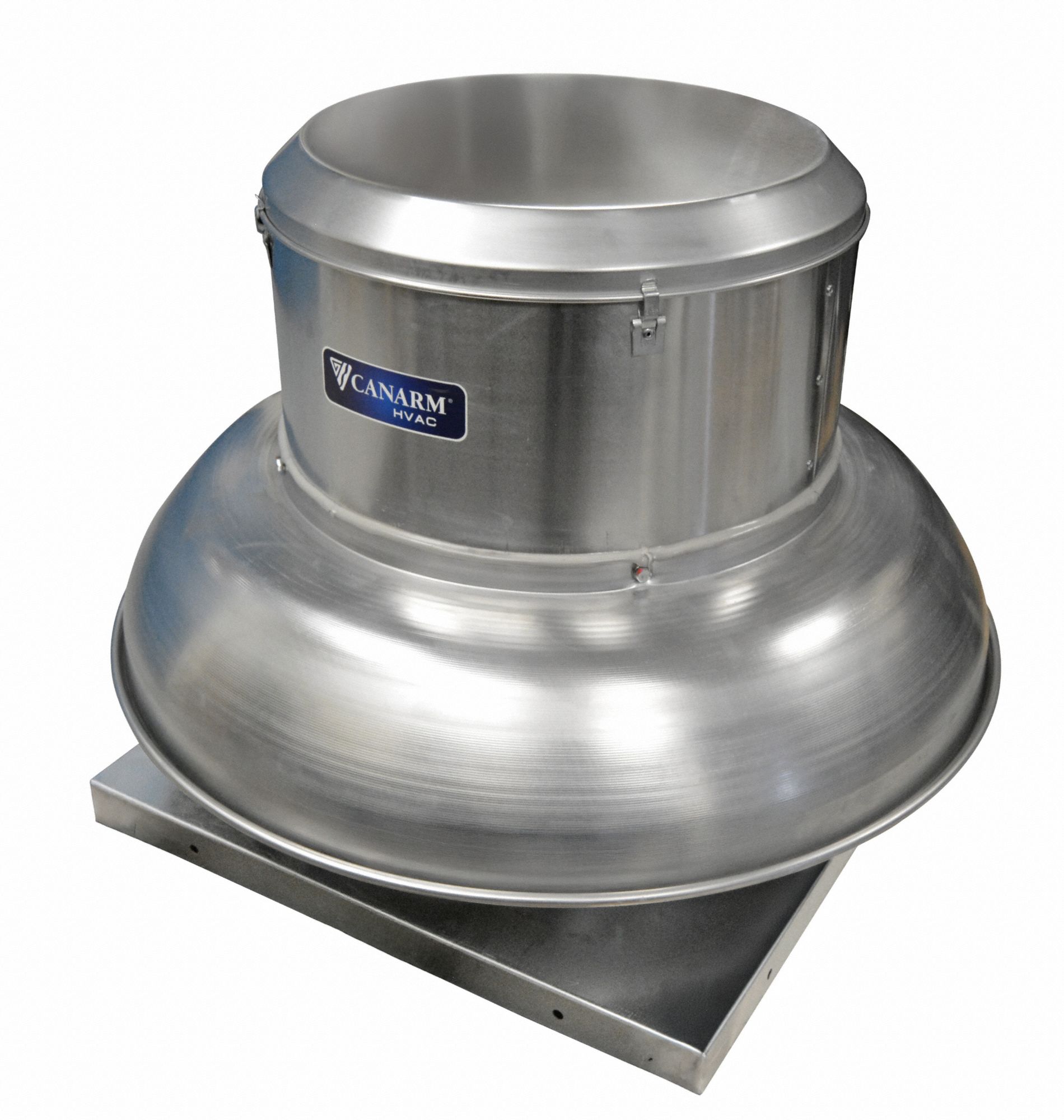

Canarm 3G-OTH-80616 — Technical Specifications
The CANARM Centrifugal Downblast Roof Exhaust Fan: Belt Drive (SKU 394VR4, MPN ALX245DB30150M) is a clean air belt-drive fan without drive, assembled with a square base and a 24 1/2 in wheel. It includes a drive package and is powered by a standard-efficiency, open dripproof motor with a nameplate voltage of 230/460V AC and one speed. This unit is designed for high-static-pressure applications, delivering an exhaust airflow range of 5,000 to 10,000 cfm at 0.000 in SP and 2,000 to 4,999 cfm at 0.500 in SP, suitable for roof and wall mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 5,969 cfm |
| Brand | CANARM |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | ALX245DB30150M |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | Yes |
