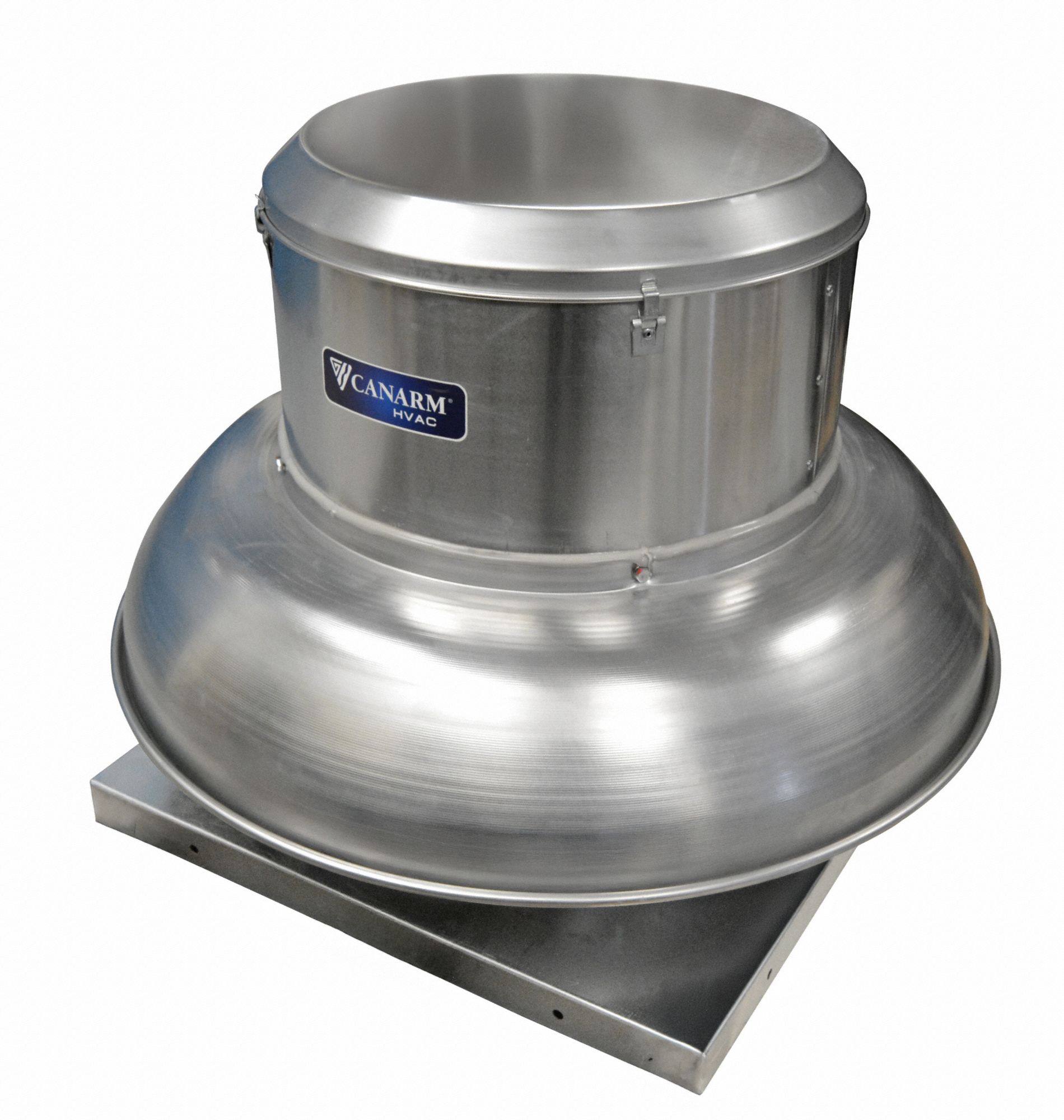

Canarm 3G-OTH-80774 — Technical Specifications
The CANARM Centrifugal Downblast Roof Exhaust Fan: Belt Drive (MPN ALX245DB30300M) is a clean air belt-drive fan without drive, assembled with a square base and includes a drive package. It features an open dripproof, standard-efficiency motor with 1 speed, nameplate voltage 230/460V AC, and is designed for high-static pressure applications. The fan delivers exhaust airflow ranges of 5,000 to 10,000 cfm at 0.000 in SP and 0.500 in SP, with a 24 1/2 in wheel and 7,265 cfm capacity.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 7,265 cfm |
| Brand | CANARM |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | ALX245DB30300M |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | Yes |
