Canarm 3G-OTH-79013 — Technical Specifications

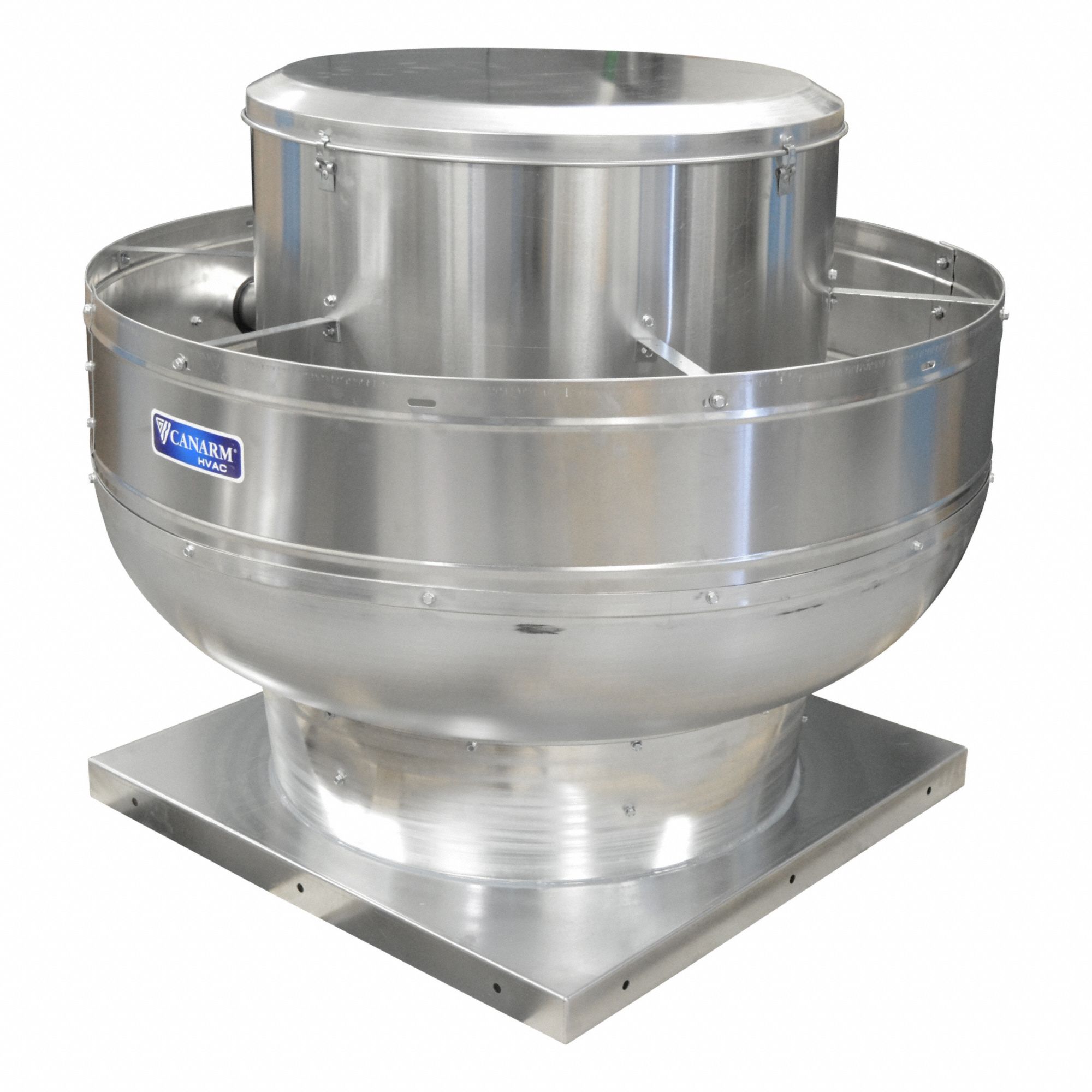

The CANARM Upblast Exhaust Fan: Belt Drive (SKU 394VP6, MPN ALX245UB30200M) is a kitchen air high-pressure belt-drive fan without drive, assembled with a square base and includes a drive package. It features an Open Dripproof motor, standard motor efficiency, variable speeds, and a nameplate voltage of 230/460V AC for wall mounting. The exhaust airflow ranges from 5,000 to 10,000 cfm at both 0.000 in SP and 0.500 in SP, with a 24 1/2 in wheel and 2 hp, 3-ph motor.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 6,311 cfm, ODP, 2 hp, 3-ph |
| Brand | CANARM |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | Variable |
| Mounting Location | Wall |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX245UB30200M |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | No |
