Canarm 3G-OTH-80230 — Technical Specifications

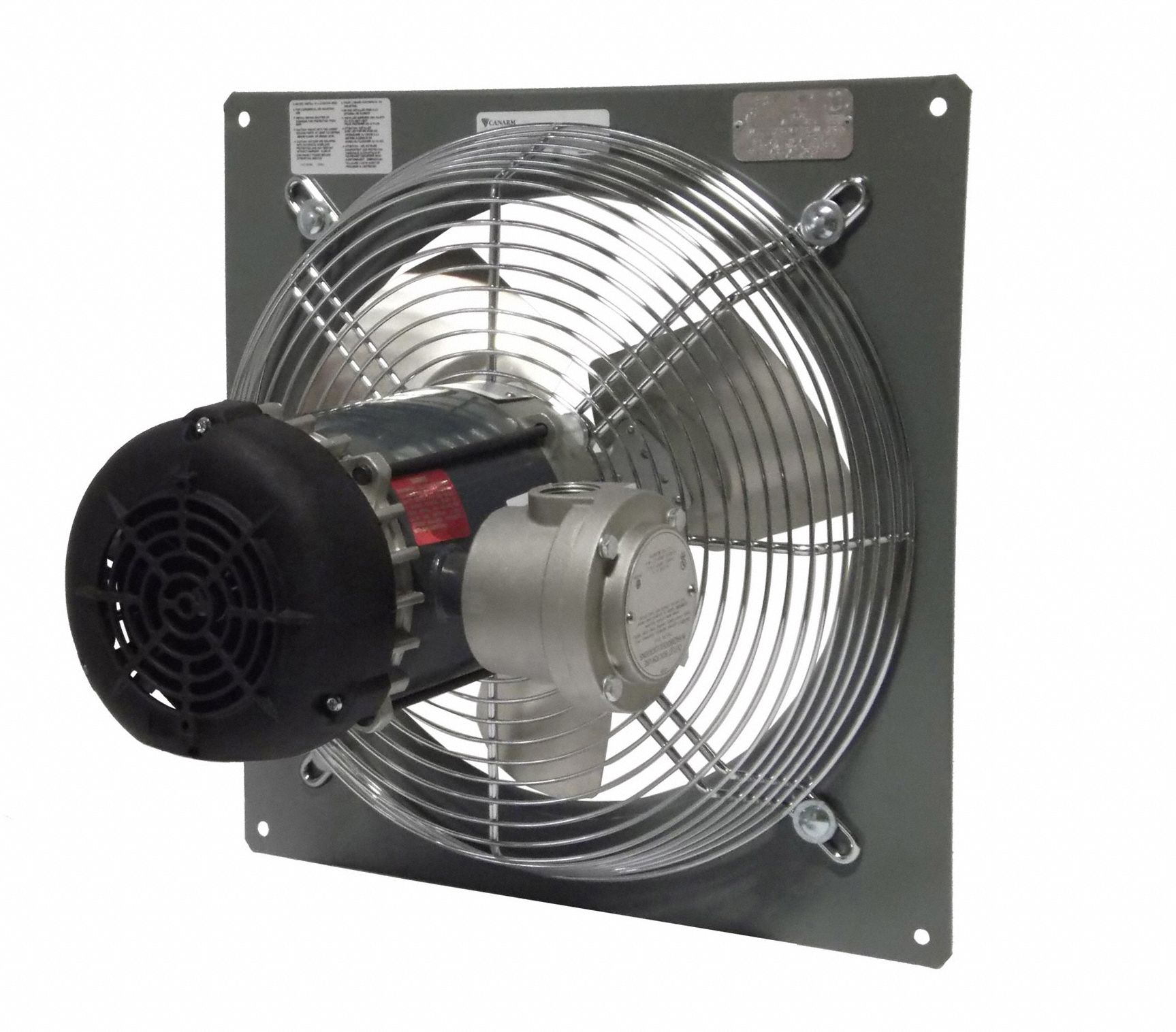

The CANARM P16-4 is a panel mounted hazardous location exhaust fan with a direct drive, 16-inch blade, 1/3 hp motor, and 2,580 cfm airflow. It operates on 115/208-230V AC single-phase power and features a powder-coated steel frame with an intake guard. The explosion-proof motor is totally enclosed air-over with Class B insulation, and the fan is rated for Class I, Div 1, Groups C and D, as well as Class II, Div 1, Groups F and G hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1/3 hp, 2,580 cfm, 1 ph |
| Blade | 16 in |
| Brand | CANARM |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | Explosion Proof |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class B |
| Number Of Speeds | 1 |
| Nameplate Voltage | 115/208-230V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Stamped |
| Hazardous Location Class | Class I, Div 1, Group C and D |
| Manufacturer Part Number | P16-4 |
