Calbrite 3G-OTH-04694 — Technical Specifications

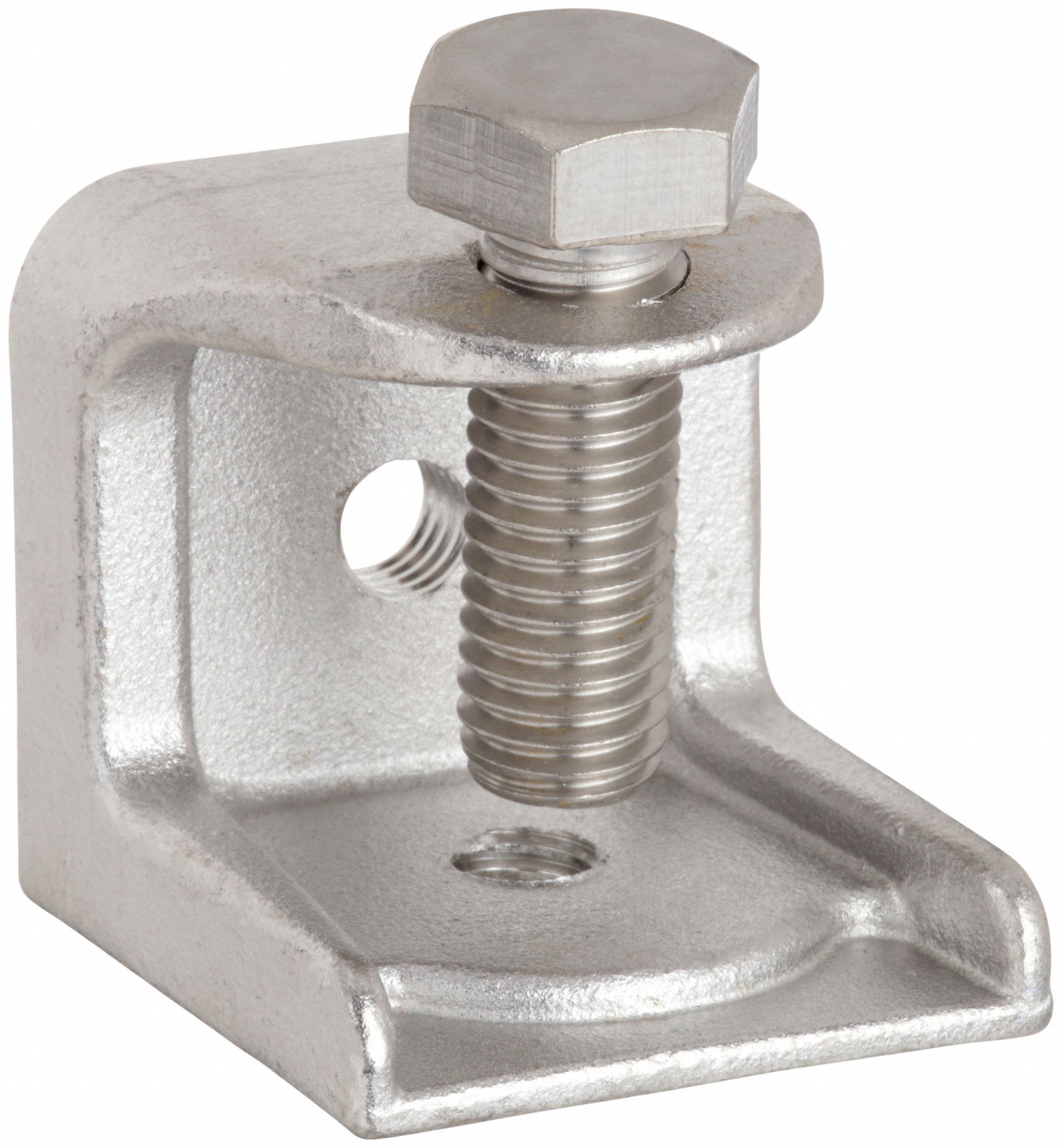

The CALBRITE Beam Clamp (SKU 36HX93) is a 316 Stainless Steel beam, wire rod and purlin clamp with a 5/8"-11 thread size and 1,100 lb load capacity. It features a screw mounting style, bottom mount orientation, and includes a set screw. Designed for use with cables and conduits, it is compatible with 1/2 in pipe and meets ASTM A351 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| UNSPSC | 31162905 |
| Includes | Set Screw |
| Material | 316 Stainless Steel |
| Standards | ASTM A351 |
| Thread Size | 5/8"-11 |
| For Use With | Cables |
| Load Capacity | 1,100 lb |
| Mounting Style | Screw |
| Country Of Origin | Varies (subject to change) |
| Compatible Pipe Size | 1/2 in |
| Mounting Orientation | Bottom Mount |
| Manufacturer Part Number | S60500BC00 |
Physical & Shipping Data
| Weight | 0.594 kg |
| Country of Origin | Varies |
