Bunting Bearings 3G-OTH-101392 — Technical Specifications

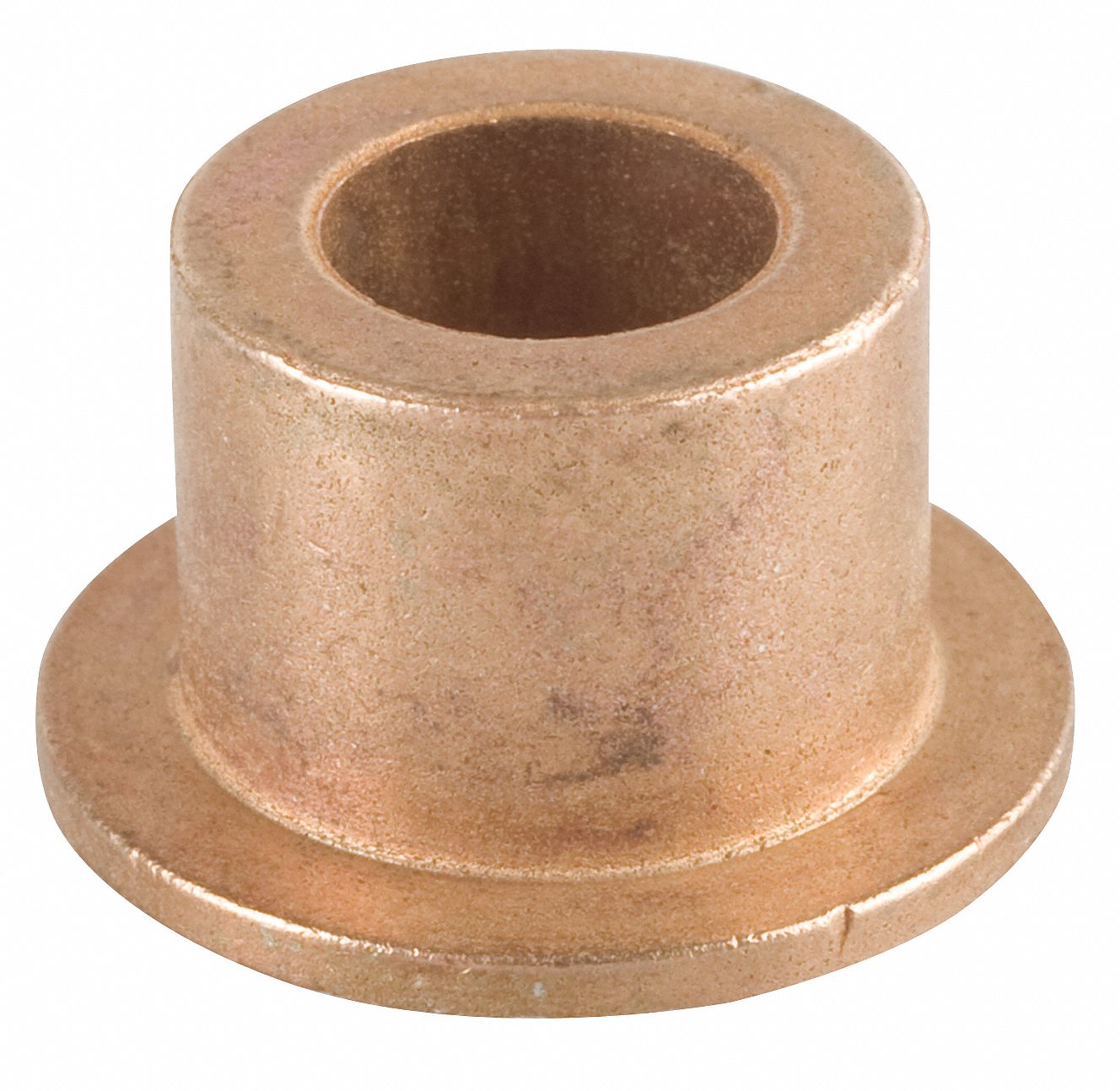

The BUNTING BEARINGS Flanged Sleeve Bearing is a lubricated general purpose metallic flanged sleeve bearing made from SAE 841 bronze with embedded SAE 30 Oil lubrication. This metric bearing has a 40 mm bore, 50 mm OD, and 40 mm length, operating within a temperature range of 10°F to 220°F (MPN FFM040050040).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 40 mm |
| OD | 50 mm |
| Bore | 40 mm |
| Type | SAE 841, SAE 30 Oil, 10°F to 220°F |
| Brand | BUNTING BEARINGS |
| Flange Type | Flanged |
| Material Grade | SAE 841 |
| Lubricant Material | SAE 30 Oil |
| Lubrication Method | Embedded |
| System Of Measurement | Metric |
| Manufacturer Part Number | FFM040050040 |
