Buchanan 3G-OTH-18319 — Technical Specifications

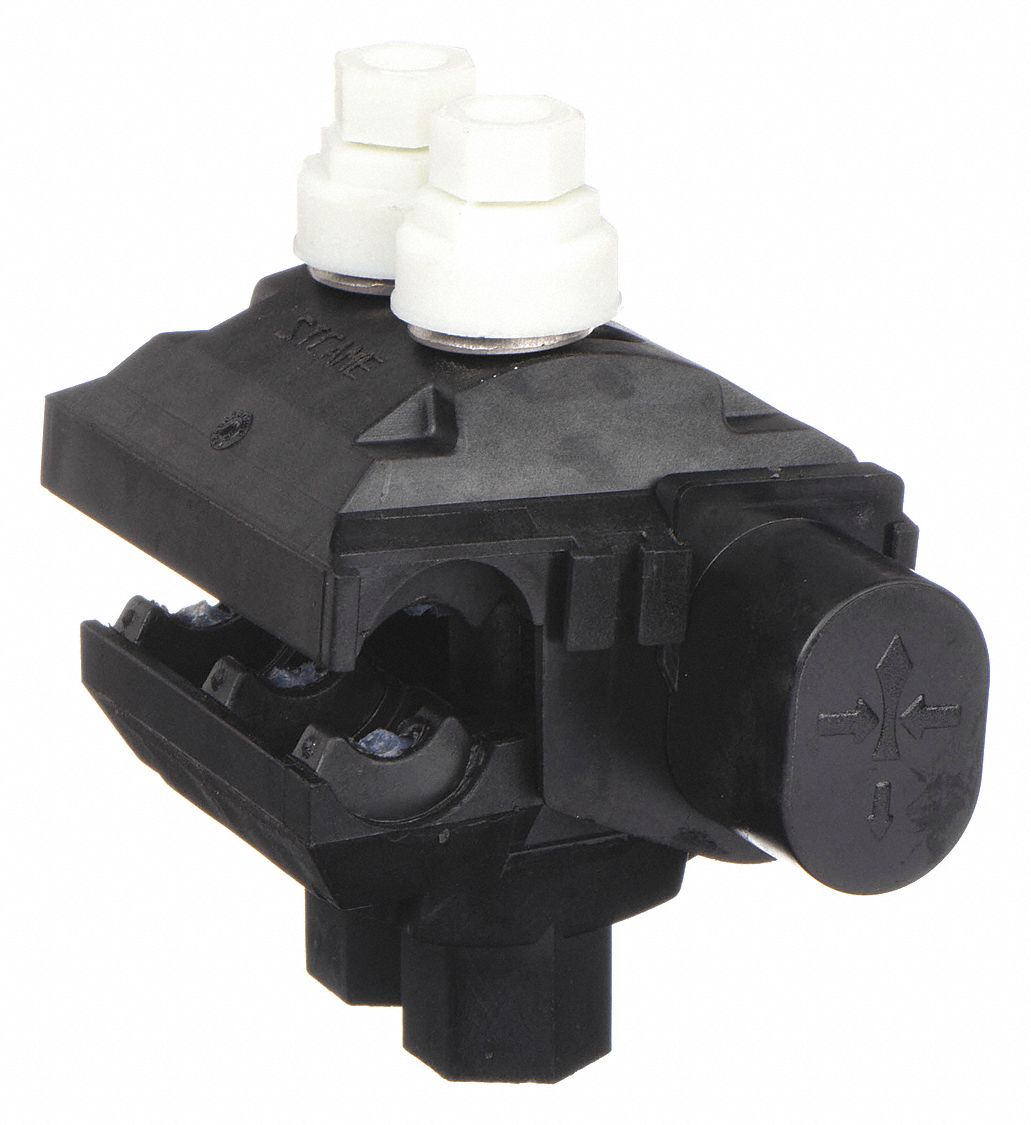

The BUCHANAN Insulation Displacement Connector: Run Tap (MPN BTC500-4) is a mechanical insulation piercing connector designed for moisture-resistant electrical applications. It accommodates run wire sizes from 2/0 AWG to 500 kcmil and tap wire sizes from 4 AWG to 4/0 AWG, includes (2) bolts, and features a gel fill material for corrosion resistance.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 2/0 AWG – 500 kcmil Run Wire Size Range |
| Brand | BUCHANAN |
| Includes | (2) Bolts |
| Wire Type | Electrical |
| Application | Moisture Resistant |
| Fill Material | Gel |
| Maximum Run Wire Size | 500 kcmil |
| Maximum Tap Wire Size | 4/0 AWG |
| Minimum Run Wire Size | 2/0 AWG |
| Minimum Tap Wire Size | 4 AWG |
| Resistance Properties | Corrosion-Resistant |
| Manufacturer Part Number | BTC500-4 |
