Brooks 3G-OTH-90289 — Technical Specifications

Name: Brooks 3G-OTH-90289 BROOKS Mechanical Flowmeter: Flow Meter, Scale, Variable Area, Panel Mount, Vertical, Liters, FNPT (MPN 1250AR6051MRSVV). Key specifications — Display Type: Scale; O-Ring Material: Viton; Includes Flow Rate Adjustment Knob: Yes; Includes Pressure Guage: No; Mounting Orientation: Vertical; Unit Of Measure: Liters; Brand: BROOKS; Accuracy: +/-5%.
Brand: Brooks

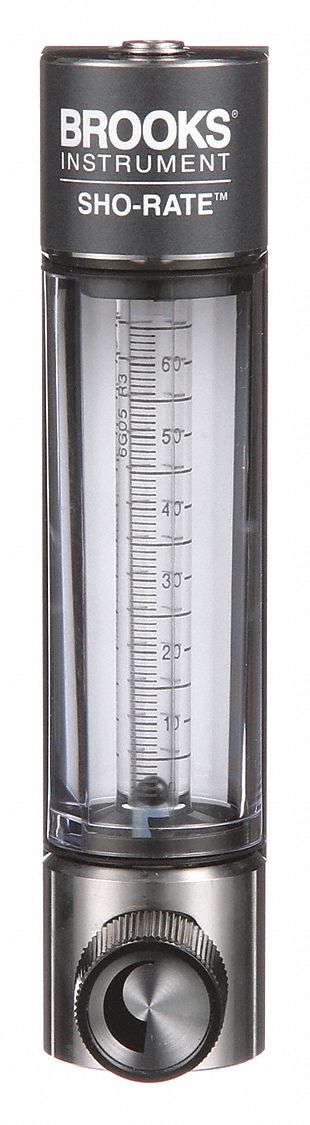

The BROOKS Mechanical Flowmeter is a panel-mount, variable-area flow meter for air and water, featuring a scale display and vertical mounting orientation. It offers an accuracy of +/-5% and measures flow in liters, with a Viton O-ring and seal material. The unit includes a flow rate adjustment knob but does not include a pressure gauge.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	BROOKS
Accuracy	+/-5%
Display Type	Scale
Seal Material	Viton
O-Ring Material	Viton
Unit Of Measure	Liters
Mounting Orientation	Vertical
Includes Pressure Guage	No
Manufacturer Part Number	1250AR6051MRSVV
Includes Flow Rate Adjustment Knob	Yes
