Bridgeport Fittings 3G-OTH-04887 — Technical Specifications

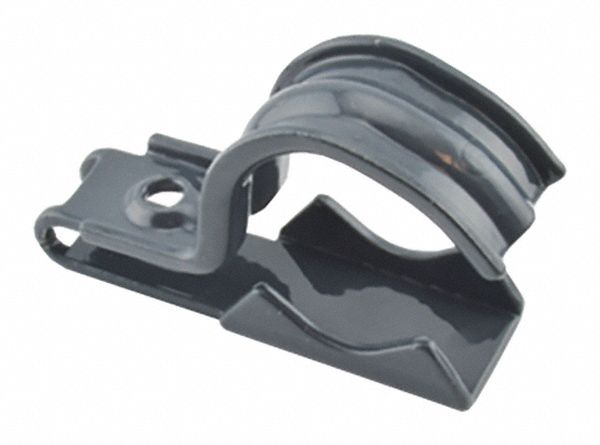

The BRIDGEPORT FITTINGS UCSC150200 is a universal one-piece steel surface mount clamp for conduit and pipe, designed for use with MC/AC cable and compatible with EMT, FMC, IMC, and metallic liquid-tight conduit in trade sizes 1-1/2 in and 2 in. It features a corrosion-resistant polyolefin coating, is ETL listed, and supports a load capacity of 100 lb with a wire range of 1.735 to 2.450 AC/MC/JMC. This clamp is for outdoor use only and is UV resistant.
Technical Specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Finish | Corrosion Resistant Polyolefin Coating |
| Series | UCSC |
| Material | Steel |
| Standards | ETL Listed |
| Wire Range | 1.735 to 2.450 AC/MC/JMC |
| Thread Size | 5/16-18 |
| For Use With | MC/AC Cable |
| Sub-Category | Conduit Clamps |
| Load Capacity | 100 lb |
| Overall Width | 1-3/16 in |
| Overall Height | 2-31/32 in |
| Overall Length | 4-3/16 in |
| Flange Thickness | 1-1/2 in to 2 in |
| Country Of Origin | USA (subject to change) |
| Compatible Pipe Size | 1-1/2 in |
| For Maximum Cable OD | 2.45 in |
| For Minimum Cable OD | 1.735 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Resistance Properties | UV Resistant |
| Mounting Hole Diameter | 0.34 in |
| Compatible Conduit Type | EMT |
| Manufacturer Part Number | UCSC150200 |
| Compatible Conduit Trade Size | 1-1/2 in |
| Compatible Nominal Conduit/Pipe Size | 1-1/2 in |
Physical & Shipping Data
| Weight | 0.29 kg |
| Country of Origin | US |
