Bridgeport Fittings 3G-OTH-04893 — Technical Specifications

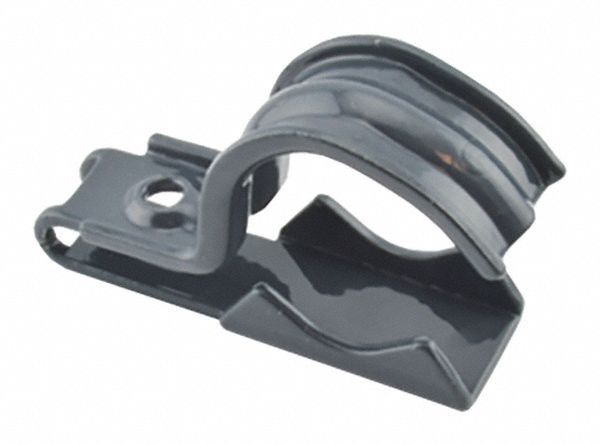

The BRIDGEPORT FITTINGS UCSC125150 is a steel surface mount clamp for conduit and pipe, part of the Series UCSC. It accommodates 1-1/4 in and 1-1/2 in trade sizes, with a load capacity of 80 lb and a corrosion-resistant polyolefin coating. This ETL-listed clamp is for outdoor use with MC/AC/JMC cable and EMT, FMC, IMC, or metallic liquid-tight conduit.
Technical Specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Finish | Corrosion Resistant Polyolefin Coating |
| Series | UCSC |
| Material | Steel |
| Standards | ETL Listed |
| Wire Range | 1.505 to 1.950 AC/MC/JMC |
| Thread Size | 1/4-20 |
| For Use With | MC/AC/JMC Cable |
| Sub-Category | Conduit Clamps |
| Load Capacity | 80 lb |
| Overall Width | 1-1/8 in |
| Overall Height | 2-9/32 in |
| Overall Length | 3-3/8 in |
| Flange Thickness | 1-1/4 in to 1-1/2 in |
| Country Of Origin | USA (subject to change) |
| Compatible Pipe Size | 1-1/4 in |
| For Maximum Cable OD | 1.95 in |
| For Minimum Cable OD | 1.505 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Resistance Properties | UV Resistant |
| Mounting Hole Diameter | 0.28 in |
| Compatible Conduit Type | EMT |
| Manufacturer Part Number | UCSC125150 |
| Compatible Conduit Trade Size | 1-1/4 in |
| Compatible Nominal Conduit/Pipe Size | 1-1/4 in |
Physical & Shipping Data
| Weight | 0.159 kg |
| Country of Origin | US |
