Bridgeport Fittings 3G-OTH-04919 — Technical Specifications

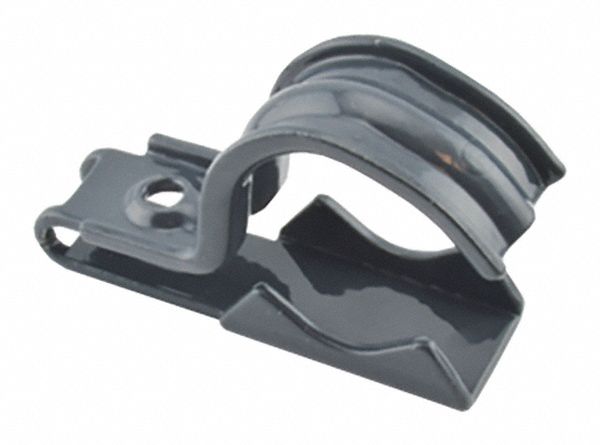

The BRIDGEPORT FITTINGS UCSC-75100 is a steel surface mount clamp for conduit and pipe, designed for use with MC/AC cable and compatible with EMT, FMC, IMC, and metallic liquid-tight conduit in 3/4 in and 1 in trade sizes. It features a corrosion-resistant polyolefin coating, a 50 lb load capacity, and is ETL listed for outdoor use with UV resistance. The clamp accommodates a wire range of .925 to 1.32 in for AC/MC/JMC cable and has a 1/4-20 thread size.
Technical Specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Finish | Corrosion Resistant Polyolefin Coating |
| Series | UCSC |
| Material | Steel |
| Standards | ETL Listed |
| Wire Range | .925 to 1.32 AC/MC/JMC |
| Thread Size | 1/4-20 |
| For Use With | MC/AC Cable |
| Sub-Category | Conduit Clamps |
| Load Capacity | 50 lb |
| Overall Width | 1-31/32 in |
| Overall Height | 1-7/8 in |
| Overall Length | 2-7/8 in |
| Flange Thickness | 3/4 in to 1 in |
| Country Of Origin | USA (subject to change) |
| Compatible Pipe Size | 3/4 in |
| For Maximum Cable OD | 1.32 in |
| For Minimum Cable OD | 0.925 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Resistance Properties | UV Resistant |
| Mounting Hole Diameter | 0.265 in |
| Compatible Conduit Type | EMT |
| Manufacturer Part Number | UCSC-75100 |
| Compatible Conduit Trade Size | 3/4 in |
| Compatible Nominal Conduit/Pipe Size | 3/4 in |
Physical & Shipping Data
| Weight | 0.064 kg |
| Country of Origin | US |
