Bridgeport Fittings 3G-OTH-04921 — Technical Specifications

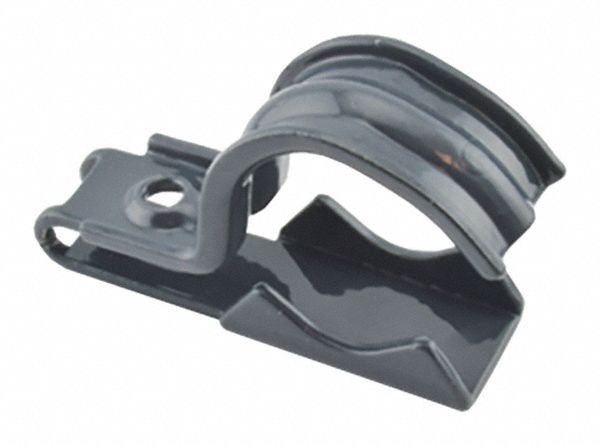

The BRIDGEPORT FITTINGS Clamp Back and Straps, Universal One-Piece (SKU 61TL13, MPN UCSC-5075) is a steel surface mount clamp for conduit and pipe, designed for outdoor use with MC/AC cable and compatible with 1/2 in and 3/4 in trade sizes of EMT, FMC, IMC, and metallic liquid-tight conduit. It features a corrosion-resistant polyolefin coating, UV resistance, a load capacity of 50 lb, and a wire range of .710 to 1.10 AC/MC/JMC, with overall dimensions of 1-31/32 in width, 1-15/32 in height, and 2-13/32 in length. ETL listed, this clamp accommodates a flange thickness of 1/2 in to 3/4 in and a mounting hole diameter of 0.255 in.
Technical Specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Finish | Corrosion Resistant Polyolefin Coating |
| Series | UCSC |
| Material | Steel |
| Standards | ETL Listed |
| Wire Range | .710 to 1.10 AC/MC/JMC |
| Thread Size | 1/4-20 |
| For Use With | MC/AC Cable |
| Sub-Category | Conduit Clamps |
| Load Capacity | 50 lb |
| Overall Width | 1-31/32 in |
| Overall Height | 1-15/32 in |
| Overall Length | 2-13/32 in |
| Flange Thickness | 1/2 in to 3/4 in |
| Country Of Origin | USA (subject to change) |
| Compatible Pipe Size | 1/2 in |
| For Maximum Cable OD | 1.1 in |
| For Minimum Cable OD | 0.71 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Resistance Properties | UV Resistant |
| Mounting Hole Diameter | 0.255 in |
| Compatible Conduit Type | EMT |
| Manufacturer Part Number | UCSC-5075 |
| Compatible Conduit Trade Size | 1/2 in |
| Compatible Nominal Conduit/Pipe Size | 1/2 in |
Physical & Shipping Data
| Weight | 0.045 kg |
| Country of Origin | US |
