Brah Electric 3G-OTH-22546 — Technical Specifications

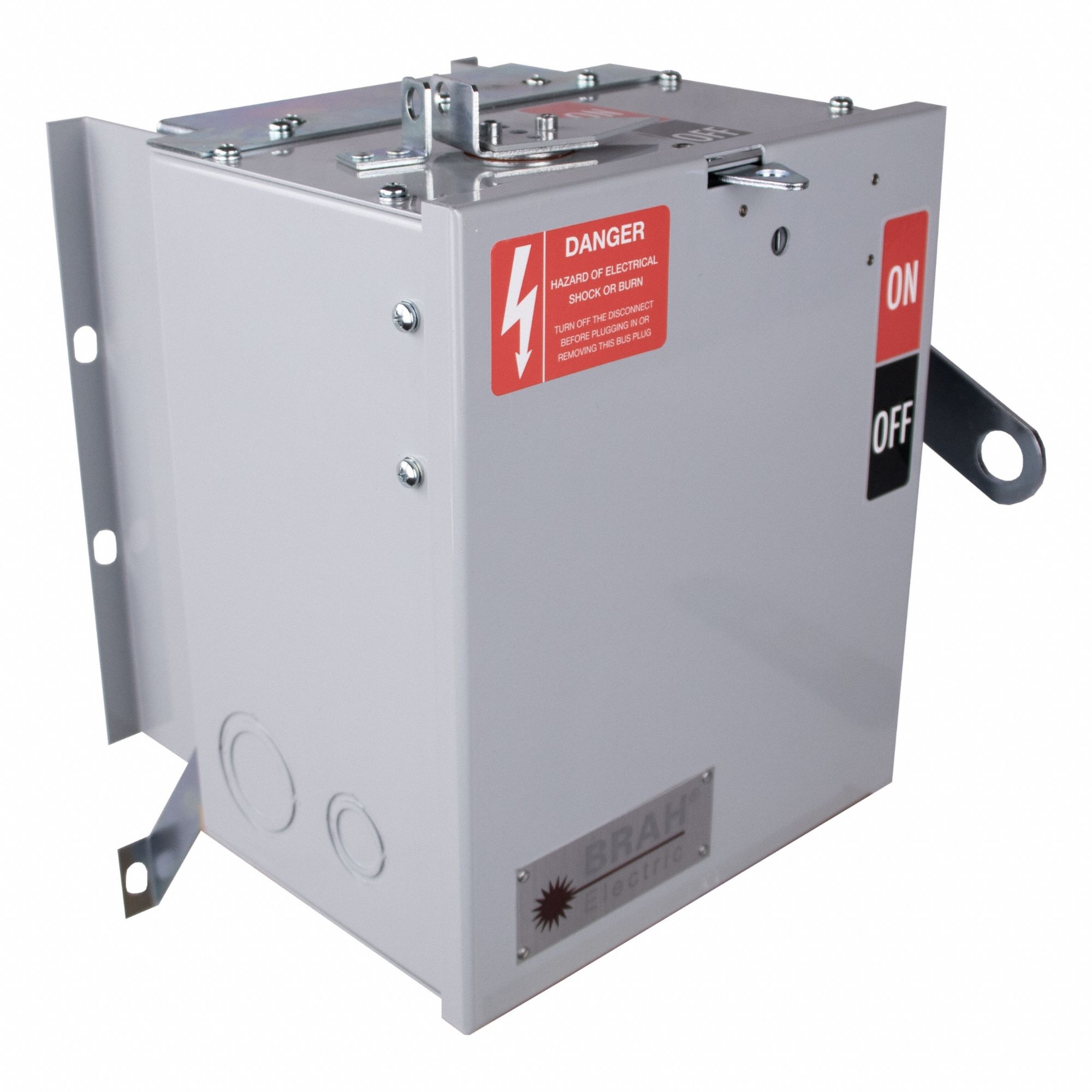

The BRAH ELECTRIC Bus Plug is an obsolete Siemens-style fusible bus plug designed for use with Siemens BD Busway. It operates at 600V, accepts Class K fuses, and uses a BES breaker type. This unit replaces OEM part number BOS16452G and is identified by manufacturer part number BES3606GN. Weather stripping is not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Replaces BOS16452G/BOS16452GR, Fusible, 600V |
| Brand | BRAH ELECTRIC |
| Voltage | 600V |
| Fuse Class | K |
| Breaker Type | BES |
| For Use With | Siemens BD Busway |
| OEM Part Number | BOS16452G |
| Manufacturer Part Number | BES3606GN |
| Includes Weather Stripping | Weather Stripping Not Included |
