Brah Electric 3G-OTH-22786 — Technical Specifications

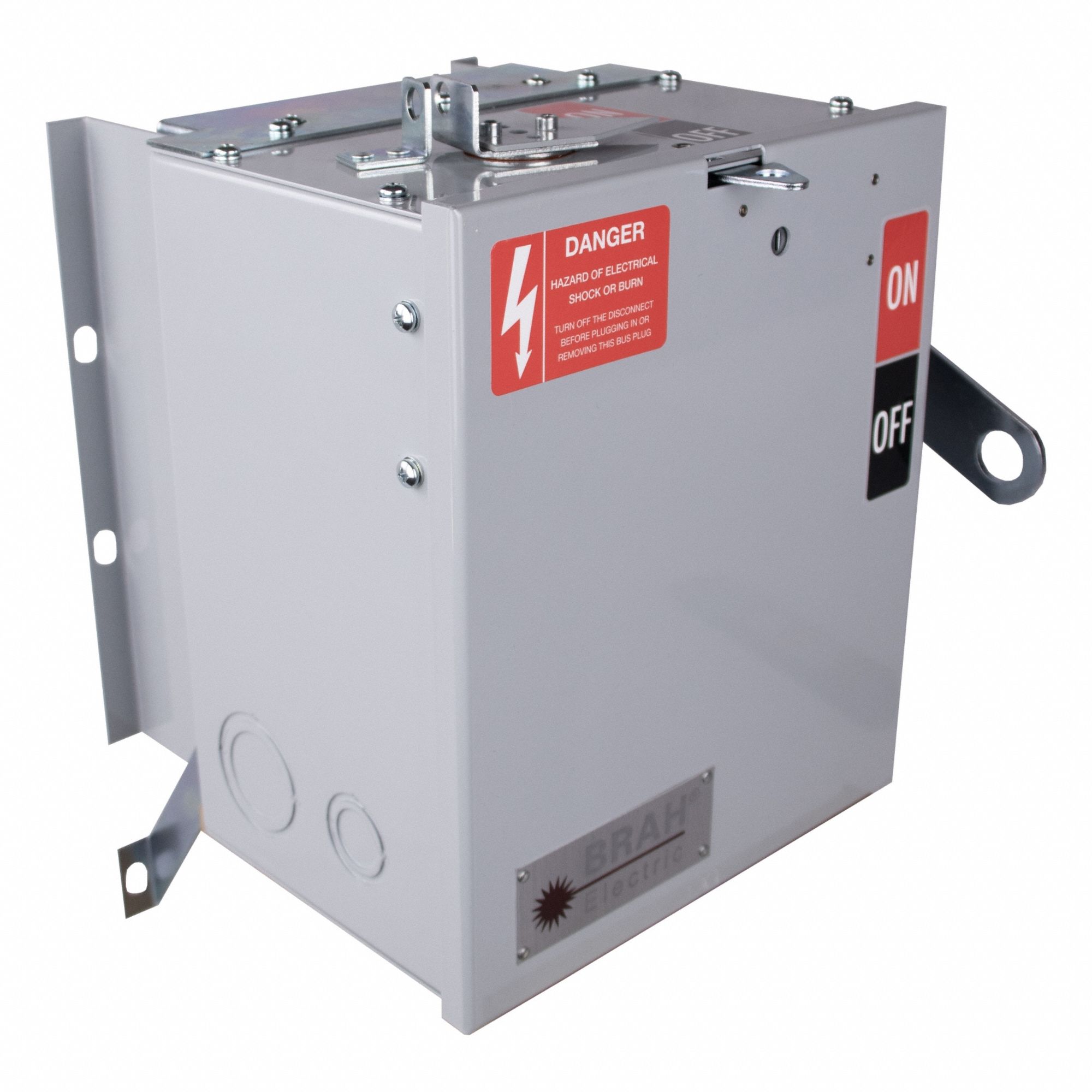

The BRAH ELECTRIC Bus Plug is an obsolete Siemens-style fusible bus plug designed for use with Siemens BD Busway. It operates at 600V, accepts Class H fuses, and uses a BES-type breaker. This unit replaces OEM part number BOS16451GR and does not include weather stripping.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Replaces BOS16451G/BOS16451GR, Fusible, 600V |
| Brand | BRAH ELECTRIC |
| Voltage | 600V |
| Fuse Class | H |
| Breaker Type | BES |
| For Use With | Siemens BD Busway |
| OEM Part Number | BOS16451GR |
| Manufacturer Part Number | BES3603GN |
| Includes Weather Stripping | Weather Stripping Not Included |
