Brad Harrison 3G-OTH-51489 — Technical Specifications

Name: Brad Harrison 3G-OTH-51489 Cordset: M12 Female Right Angle X Bare Wire, 4 Pins, Yellow, PVC, 5 m Cable Lg, 4 A Max Current (A) (MPN 804001A09M050). Key specifications — Cable Jacket Color: Yellow; End 1 Gender: Female; End 1 Mounting Orientation: Right Angle; End 2 Connection Type: Bare Wire; IP Rating: IP67; Brand: BRAD HARRISON; NEMA Rating: 6P; Wire Size: 22 AWG.
Brand: Brad Harrison

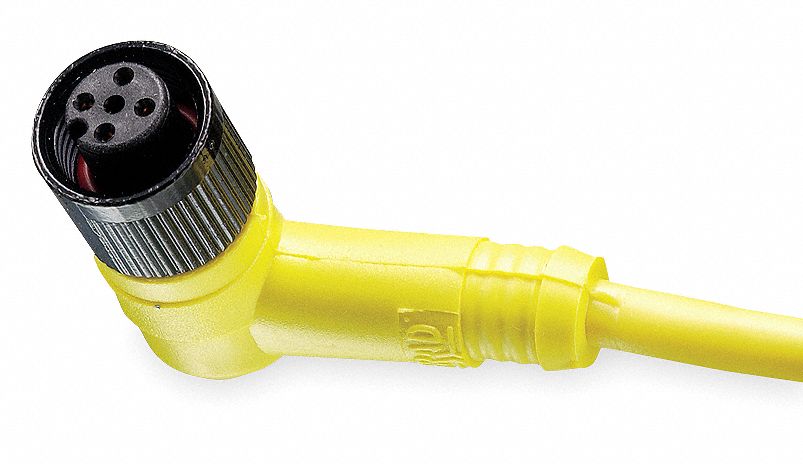

The BRAD HARRISON Cordset is a single-ended cordset with PVC jacket for flexing applications, featuring an M12 female right-angle connector on End 1 and bare wire on End 2. It has 4 pins, a 5 m cable length, 22 AWG wire size, and a yellow PVC jacket. Rated IP67 and NEMA 6P, it supports a maximum current of 4 A.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	4
Type	Yellow, PVC
Brand	BRAD HARRISON
Cable Lg	5 m
IP Rating	IP67
Wire Size	22 AWG
NEMA Rating	6P
End 1 Gender	Female
Max Current (A)	4 A
Cable Jacket Color	Yellow
Cable Jacket Material	PVC
End 1 Connection Type	M12
End 2 Connection Type	Bare Wire
Manufacturer Part Number	804001A09M050
End 1 Mounting Orientation	Right Angle
