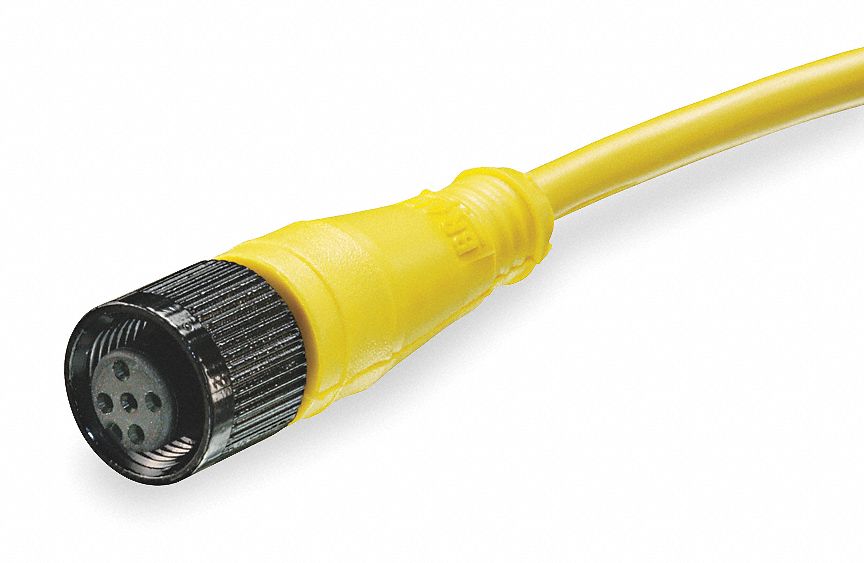

Brad Harrison 3G-OTH-51206 — Technical Specifications
The BRAD HARRISON Cordset is a single-ended cordset with a PVC jacket for flexing applications, featuring an M12 female straight connector on one end and bare wire on the other. It has 3 pins, a 2 m cable length, 22 AWG wire size, and a maximum current of 4 A. The cordset is rated IP68 and NEMA 6P, with a yellow PVC cable jacket.
Technical Specifications
| Parameter | Value |
|---|---|
| Pins | 3 |
| Type | Yellow, PVC |
| Brand | BRAD HARRISON |
| Cable Lg | 2 m |
| IP Rating | IP68 |
| Wire Size | 22 AWG |
| NEMA Rating | 6P |
| End 1 Gender | Female |
| Max Current (A) | 4 A |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Manufacturer Part Number | 803000A09M020 |
| End 1 Mounting Orientation | Straight |
