Brad Harrison 3G-OTH-47302 — Technical Specifications

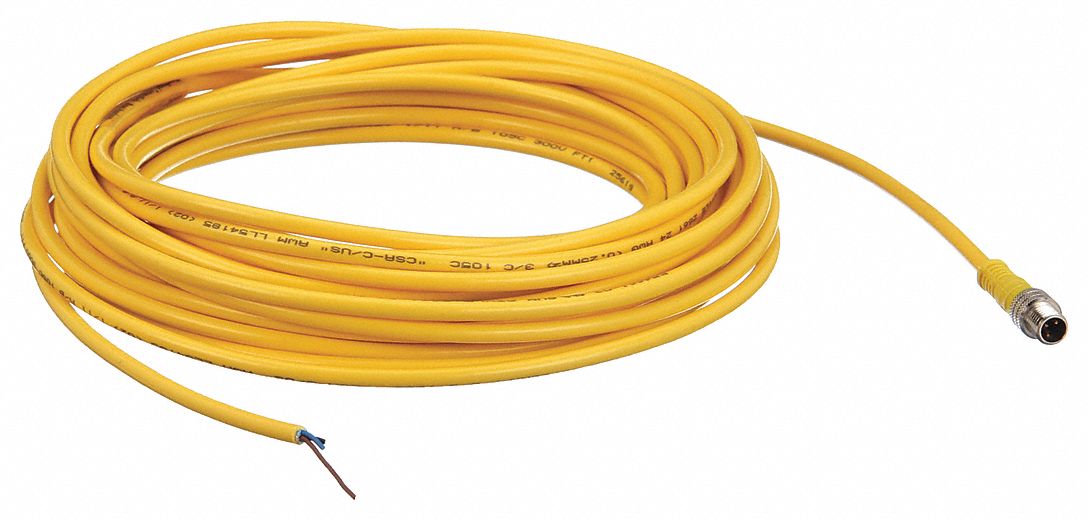

The BRAD HARRISON Cordset is a single-ended cordset with a PVC jacket for flexing applications. It features an M8 male straight connector on one end and bare wire on the other, with a 10 m cable length, 24 AWG wire size, and 3 pins. The yellow PVC jacket provides IP67 and NEMA 6P ratings.
Technical Specifications
| Parameter | Value |
|---|---|
| Pins | 3 |
| Type | Yellow, PVC |
| Brand | BRAD HARRISON |
| Cable Lg | 10 m |
| IP Rating | IP67 |
| Wire Size | 24 AWG |
| NEMA Rating | 6P |
| End 1 Gender | Male |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| End 1 Connection Type | M8 |
| End 2 Connection Type | Bare Wire |
| Manufacturer Part Number | 403006A10M100 |
| End 1 Mounting Orientation | Straight |
