Brad Harrison 3G-OTH-51620 — Technical Specifications

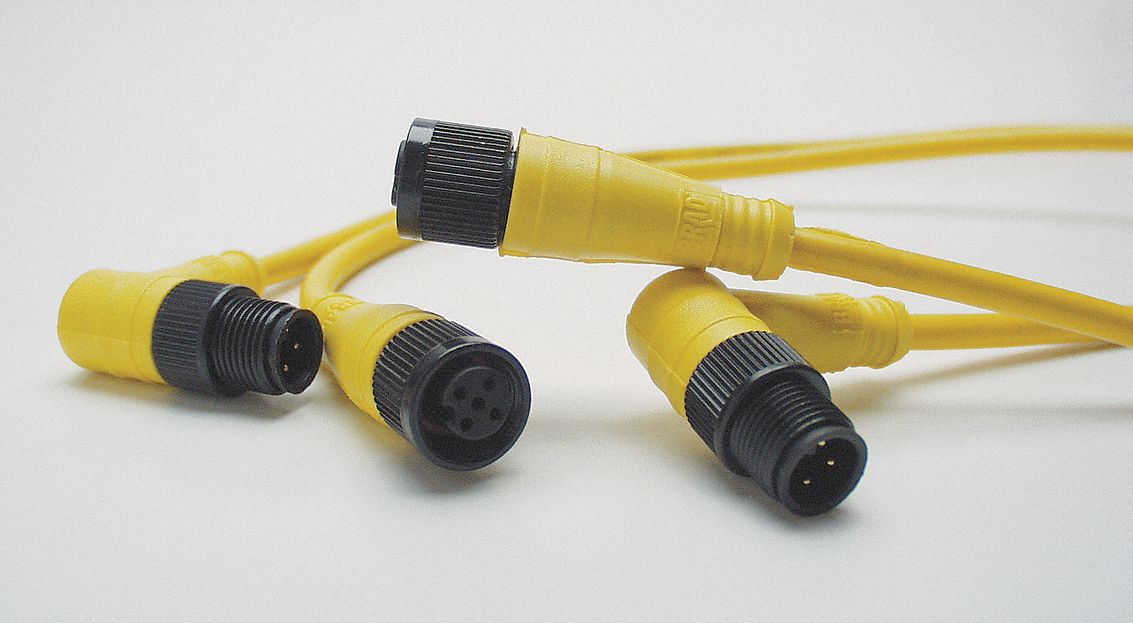

The BRAD HARRISON Cordset is a single-ended cordset with a PVC jacket for flexing applications, featuring an M12 female straight connector on one end and bare wire on the other. It has 5 pins, a 22 AWG wire size, a yellow PVC cable jacket, and a 5 m cable length with a 4 A max current. The cordset is rated IP67 and NEMA 6P.
Technical Specifications
| Parameter | Value |
|---|---|
| Pins | 5 |
| Type | Yellow, PVC |
| Brand | BRAD HARRISON |
| Cable Lg | 5 m |
| IP Rating | IP67 |
| Wire Size | 22 AWG |
| NEMA Rating | 6P |
| End 1 Gender | Female |
| Max Current (A) | 4 A |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Manufacturer Part Number | 805000A09M050 |
| End 1 Mounting Orientation | Straight |
