Bell & Gossett 3G-OTH-71146 — Technical Specifications

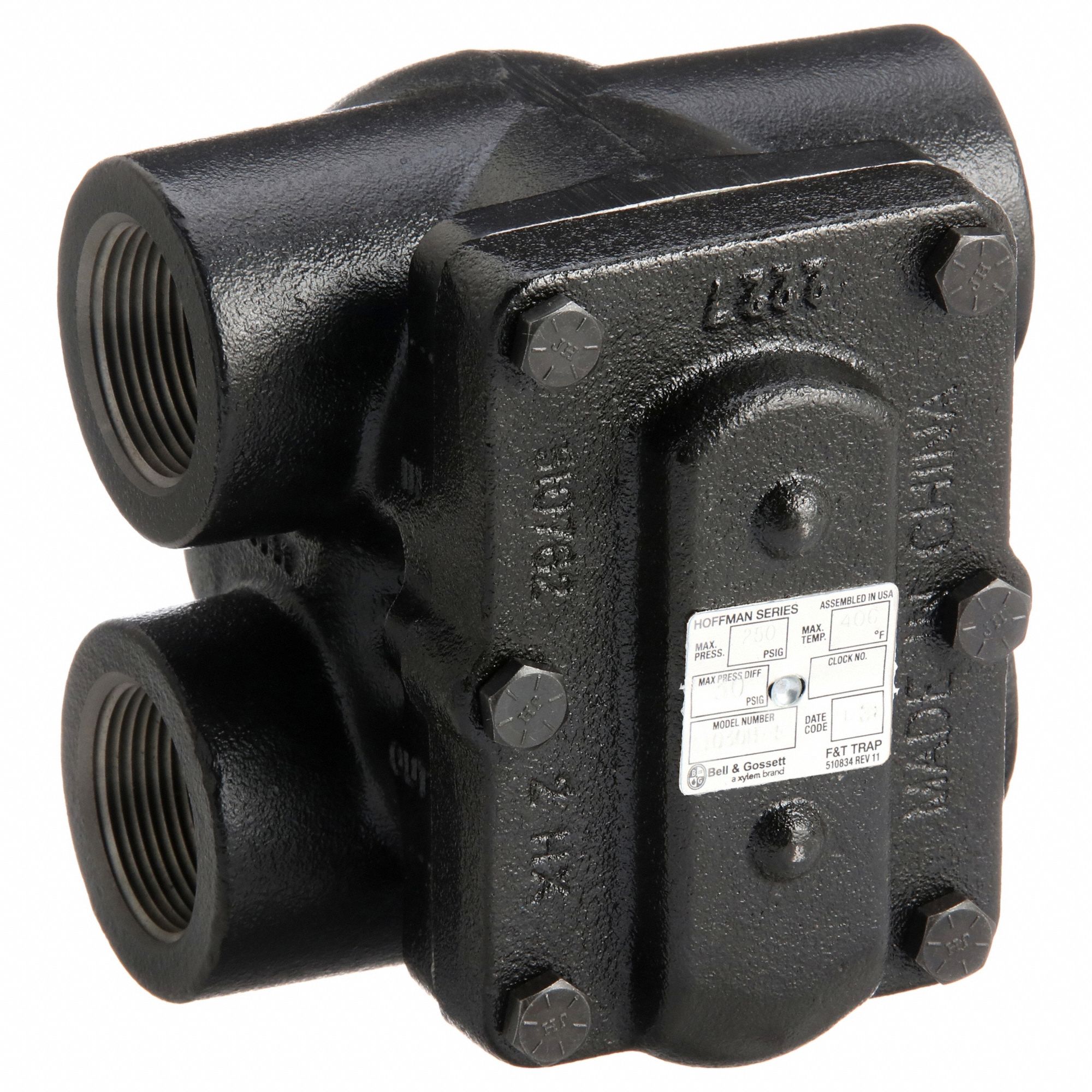

The BELL & GOSSETT Cast Iron H-Pattern Float & Thermostatic Steam Trap (MPN FT030H-5) is a horizontal-installation steam trap with a cast iron float. It features 1 1/4 in FNPT connections, a capacity of 2,200 lb/hr, a maximum pressure of 30 psi, and a maximum temperature of 406°F. This H-series trap operates with float and thermostatic action.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 1/4 in |
| Max. | 30 psi |
| Type | 2,200 lb/hr, H Pattern |
| Brand | BELL & GOSSETT |
| Float Material | Cast Iron |
| Manufacturer Series | H |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FT030H-5 |
