Belimo 3G-OTH-67144 — Technical Specifications

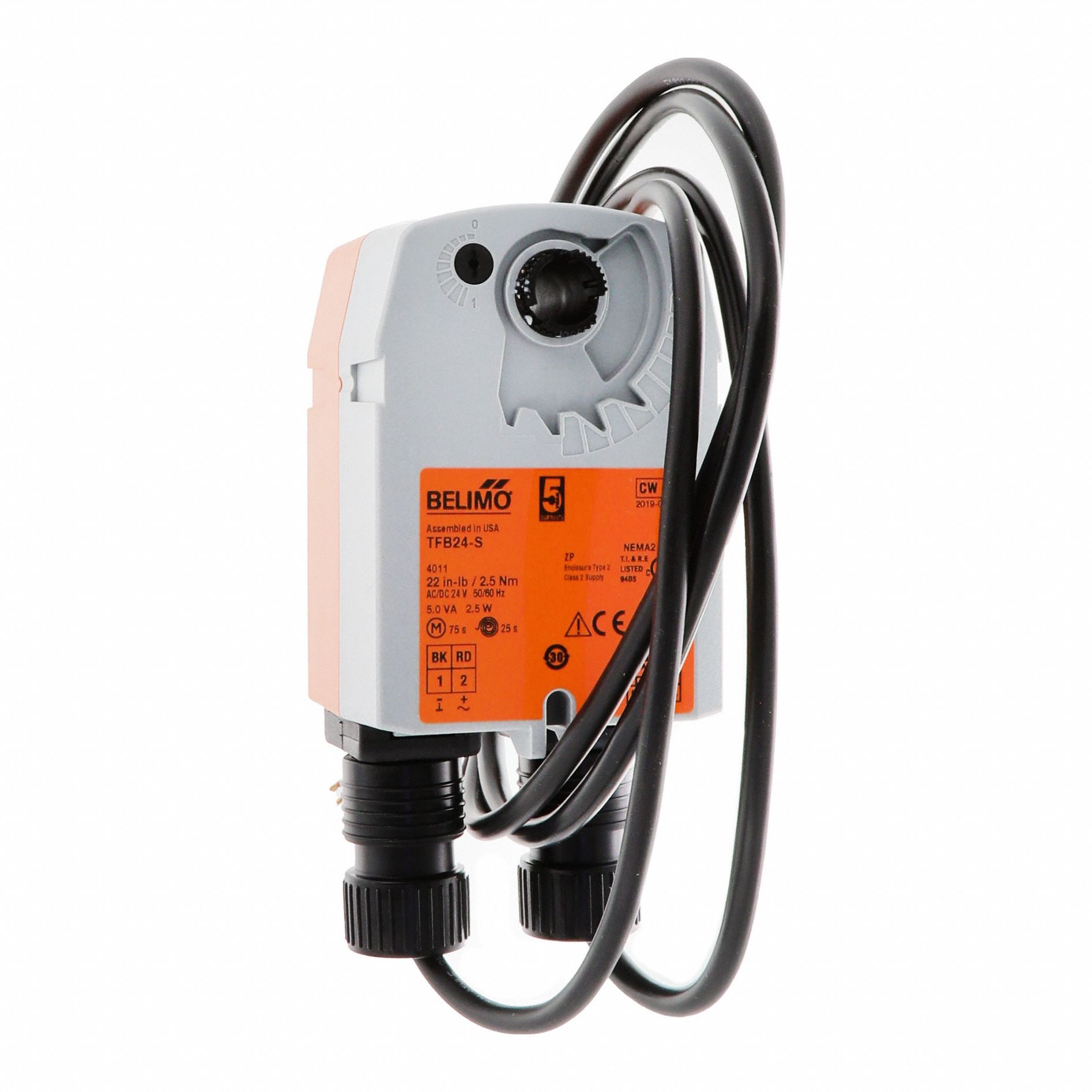

The BELIMO TFB24-S is a fail-safe damper actuator with spring return, offering on/off control. It operates on 24V AC/DC with a 5VA power rating, features a 0 to 95° stroke with CW/CCW shaft rotation for 1/4" to 1/2" shafts, and includes one auxiliary switch. This plenum-rated actuator is hardwired and is not compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | On/Off, Spring Return, 22 in-lb, Hardwired Plenum Rated Cables |
| AC/DC | 24V |
| Brand | BELIMO |
| Shaft Type | 1/4" to 1/2" |
| Power Rating | 5VA |
| Input Voltage | 24V AC/DC |
| Output Signal | 1 Auxiliary Switch |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 0 to 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | TFB24-S |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Not Building Automation System Compatible |
