Belimo 3G-OTH-66974 — Technical Specifications

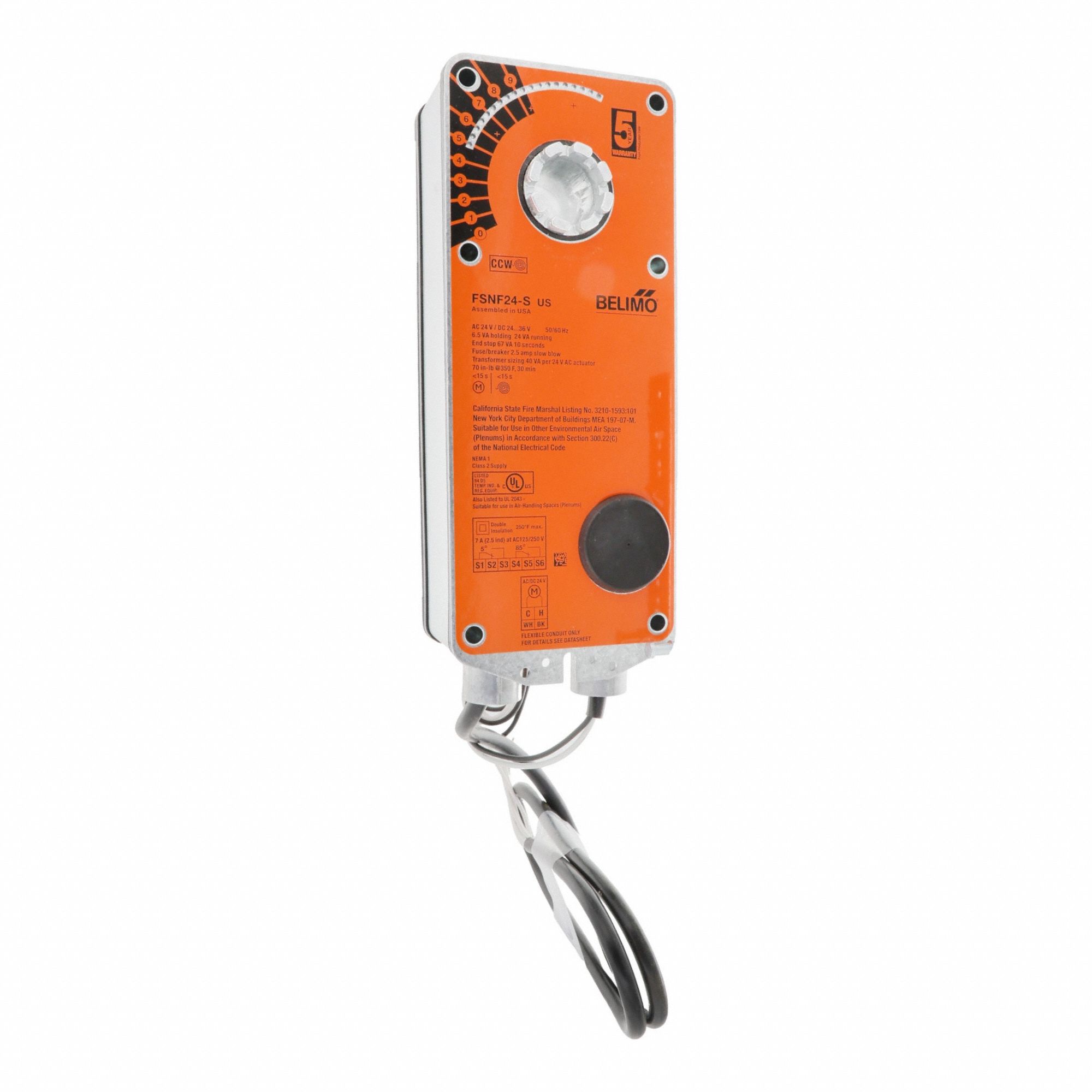

The BELIMO FSNF24-S is a fire and smoke rated actuator for dampers, featuring on/off operation with spring return and a 70 in-lb torque rating. It operates on 24V AC/DC with a 40VA power rating, provides a 0 to 95° stroke with CW/CCW shaft rotation, and includes two auxiliary switches. This plenum-rated actuator is hardwired and meets NEMA 1 / IP54 enclosure protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | On/Off, Spring Return, 70 in-lb, NEMA 1 / IP54 |
| AC/DC | 24V |
| Brand | BELIMO |
| Power Rating | 40VA |
| Input Voltage | 24V AC/DC |
| Output Signal | 2 Auxiliary Switch |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 0 to 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | FSNF24-S |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
