Belimo 3G-OTH-67134 — Technical Specifications

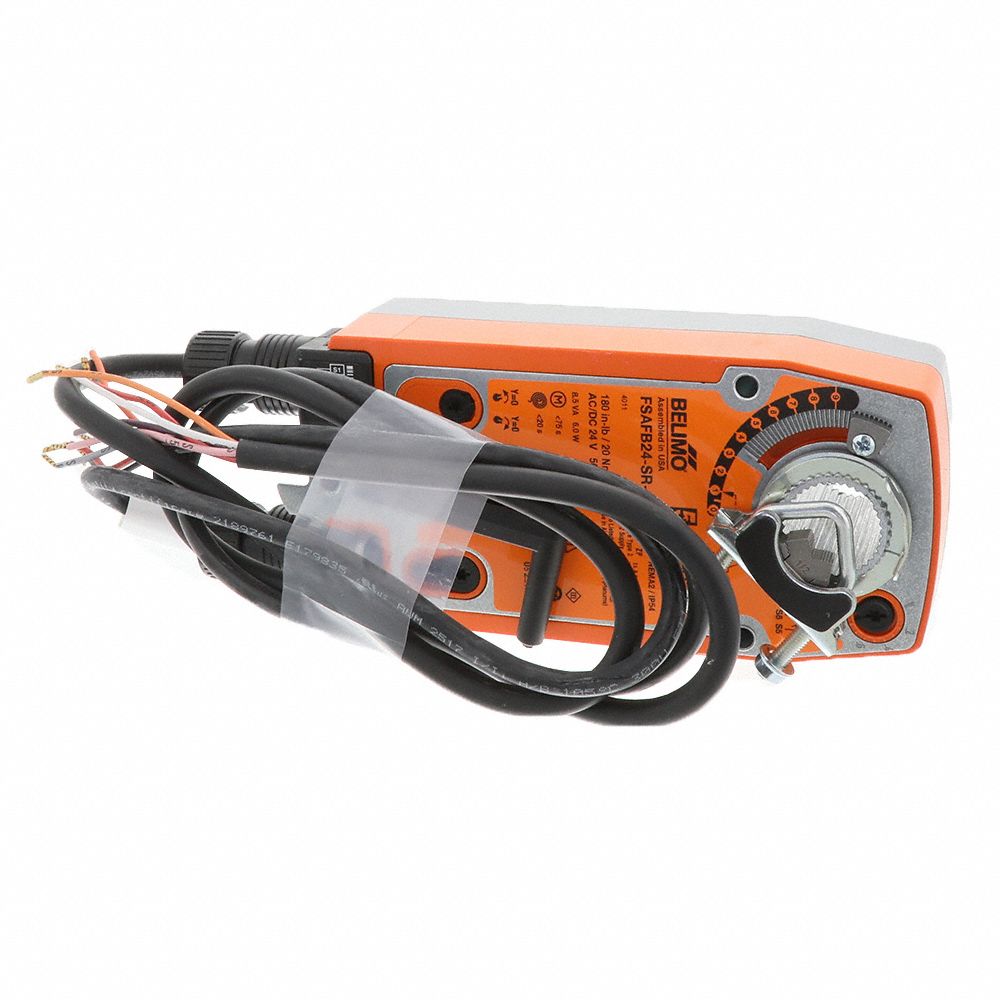

The BELIMO FSAFB24-SR-S is a proportional, spring-return fire and smoke actuator for fire and smoke dampers, rated at 180 in-lb. It operates on 24V AC/DC with a 6.5W power rating, features a 95° stroke with CW/CCW shaft rotation, and includes an auxiliary switch. This plenum-rated actuator is hardwired and compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Proportional, Spring Return, 180 in-lb |
| AC/DC | 24V |
| Brand | BELIMO |
| Power Rating | 6.5W |
| Input Voltage | 24V AC/DC |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | FSAFB24-SR-S |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
