Barnes & Jones 3G-OTH-72416 — Technical Specifications

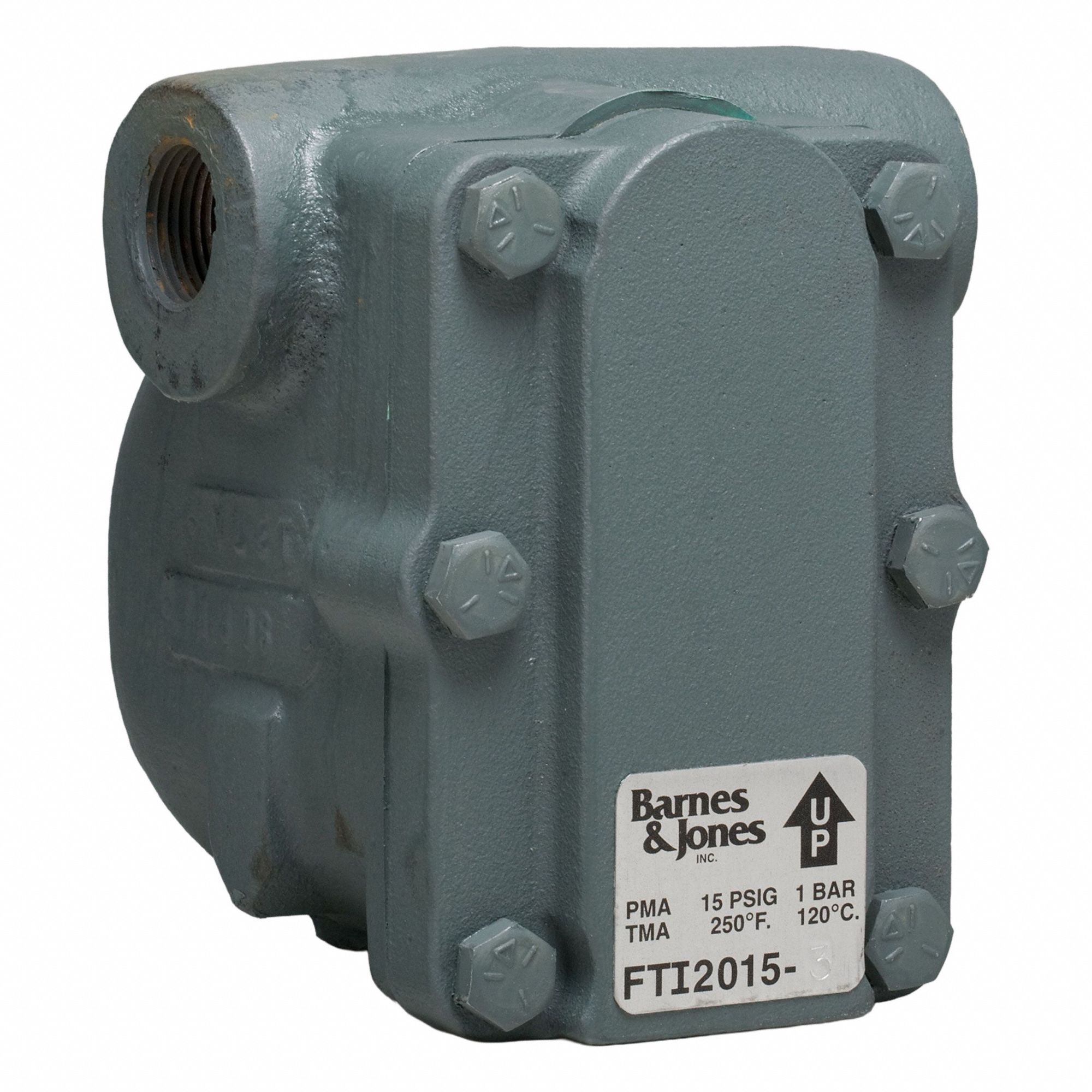

The BARNES & JONES Cast Iron In-line Float & Thermostatic Steam Trap (MPN FTI2015-3) is a 3/4 in FNPT steam trap with a maximum capacity of 1,129 lb/hr at 15 psig and a maximum temperature of 345°F. It features a stainless steel float and is designed for horizontal installation as part of the Manufacturer Series B.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 3/4 in |
| Max. | 345°F |
| Type | 1,129 lb/hr, 15 psig Max., In-line |
| Brand | BARNES & JONES |
| Float Material | Stainless Steel |
| Manufacturer Series | B |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTI2015-3 |
