Bando 3G-OTH-109650 — Technical Specifications

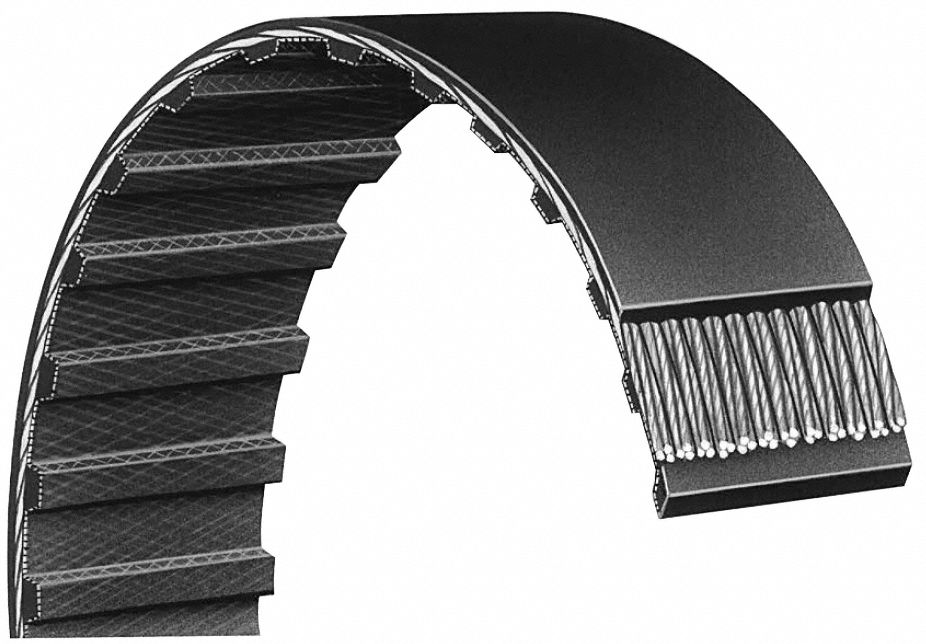

The BANDO Timing Belt: One Side is a closed-loop, polyurethane-coated trapezoidal timing belt from the Synchro-Link® series, featuring a T10 tooth profile with a 10 mm pitch, 25 mm top width, and 78 teeth (Industry Number T10-780). This belt is reinforced with fiberglass and is identified by Manufacturer Part Number 25T10-780UG.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Synchro-Link®, T10-780, Fiberglass |
| Brand | BANDO |
| Pitch | 10 mm |
| Teeth | 78 |
| Top Wd | 25 mm |
| Belt Series | Synchro-Link® |
| Length Type | Closed Loop |
| Belt Coating | Polyurethane |
| Tooth Profile | Trapezoidal |
| Industry Number | T10-780 |
| Manufacturer Part Number | 25T10-780UG |
