Bando 3G-OTH-109608 — Technical Specifications

Name: Bando 3G-OTH-109608 BANDO Timing Belt: One Side, Synchro-Link®, 10 mm Pitch, 25 mm Top Wd, T10-750, 75 Teeth, Fiberglass (MPN 25T10-750UG). Key specifications — Manufacturer Part Number: 25T10-750UG; Belt Coating: Polyurethane; Belt Series: Synchro-Link®; Brand: BANDO; Industry Number: T10-750; Length Type: Closed Loop; Tooth Profile: Trapezoidal.
Brand: Bando

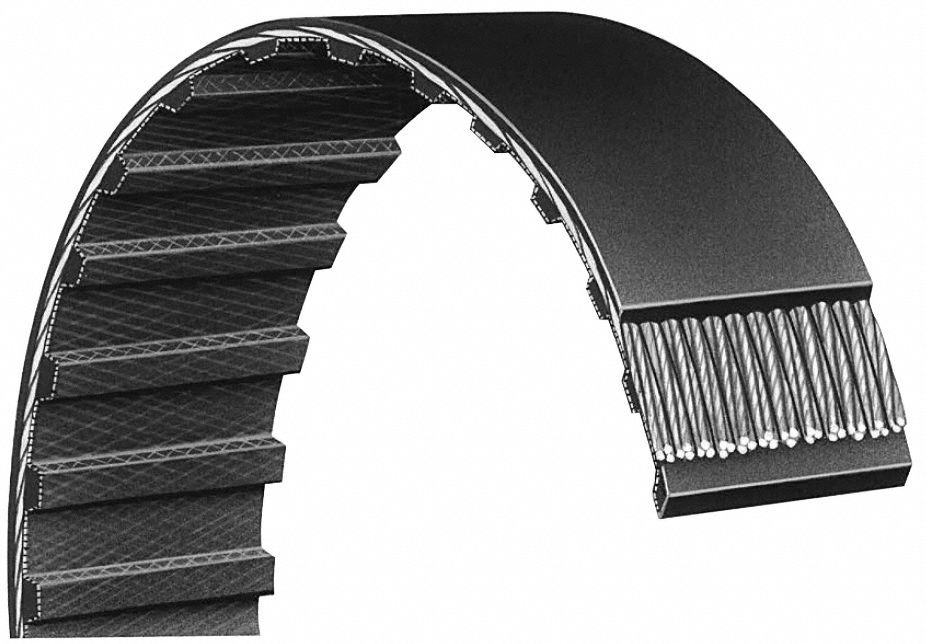

The BANDO Timing Belt: One Side is a closed-loop, trapezoidal-tooth timing belt from the Synchro-Link® series. It features a polyurethane coating, a 10 mm pitch, a 25 mm top width, and 75 teeth with fiberglass reinforcement, identified by industry number T10-750 and manufacturer part number 25T10-750UG.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Synchro-Link®, T10-750, Fiberglass
Brand	BANDO
Pitch	10 mm
Teeth	75
Top Wd	25 mm
Belt Series	Synchro-Link®
Length Type	Closed Loop
Belt Coating	Polyurethane
Tooth Profile	Trapezoidal
Industry Number	T10-750
Manufacturer Part Number	25T10-750UG
