Bando 3G-OTH-109266 — Technical Specifications

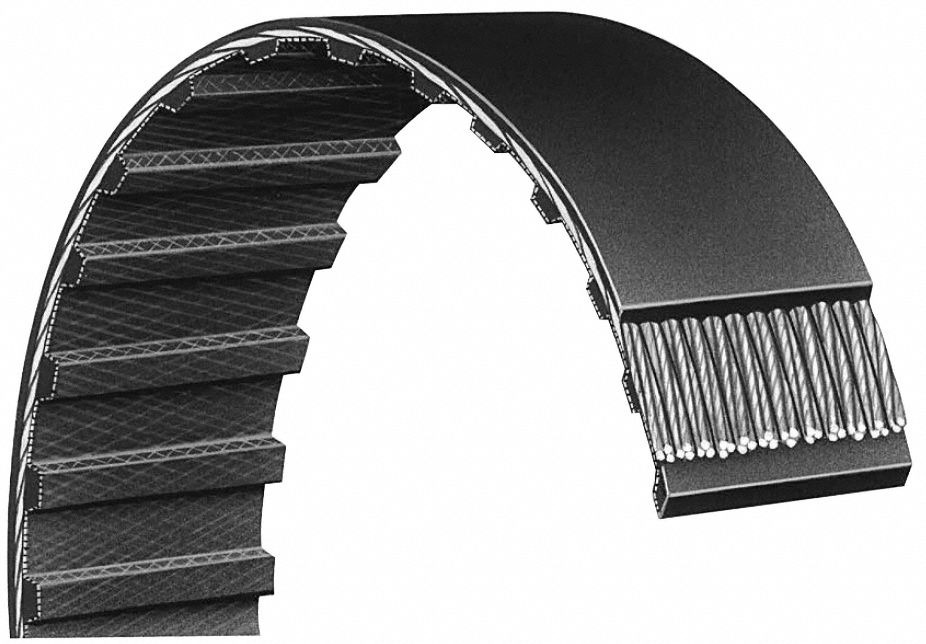

The BANDO Timing Belt: One Side is a closed-loop, polyurethane-coated trapezoidal timing belt from the Synchro-Link® series. It features a T10 tooth profile with a 10 mm pitch, 20 mm top width, and 56 teeth, reinforced with fiberglass. The belt is identified by industry number T10-560 and manufacturer part number 20T10-560UG.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Synchro-Link®, T10-560, Fiberglass |
| Brand | BANDO |
| Pitch | 10 mm |
| Teeth | 56 |
| Top Wd | 20 mm |
| Belt Series | Synchro-Link® |
| Length Type | Closed Loop |
| Belt Coating | Polyurethane |
| Tooth Profile | Trapezoidal |
| Industry Number | T10-560 |
| Manufacturer Part Number | 20T10-560UG |
