Bando 3G-OTH-109691 — Technical Specifications

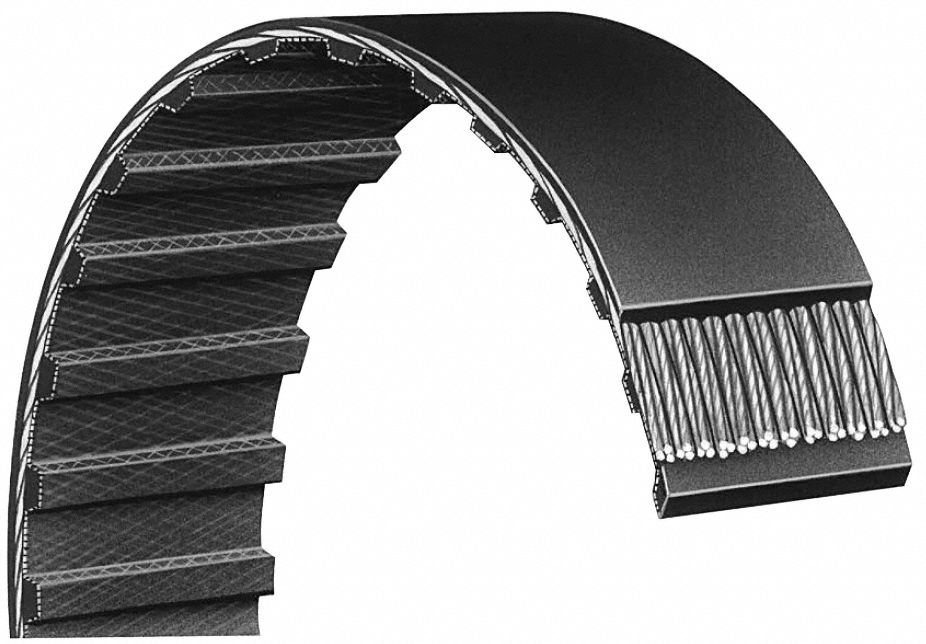

The BANDO Timing Belt: One Side is a closed-loop, polyurethane-coated trapezoidal timing belt from the Synchro-Link® series. It features a T10 section with a 10 mm pitch, 16 mm top width, 84 teeth, and fiberglass reinforcement, identified by manufacturer part number 16T10-840UG and industry number T10-840.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Synchro-Link®, T10-840, Fiberglass |
| Brand | BANDO |
| Pitch | 10 mm |
| Teeth | 84 |
| Top Wd | 16 mm |
| Belt Series | Synchro-Link® |
| Length Type | Closed Loop |
| Belt Coating | Polyurethane |
| Tooth Profile | Trapezoidal |
| Industry Number | T10-840 |
| Manufacturer Part Number | 16T10-840UG |
