Bando 3G-OTH-111164 — Technical Specifications

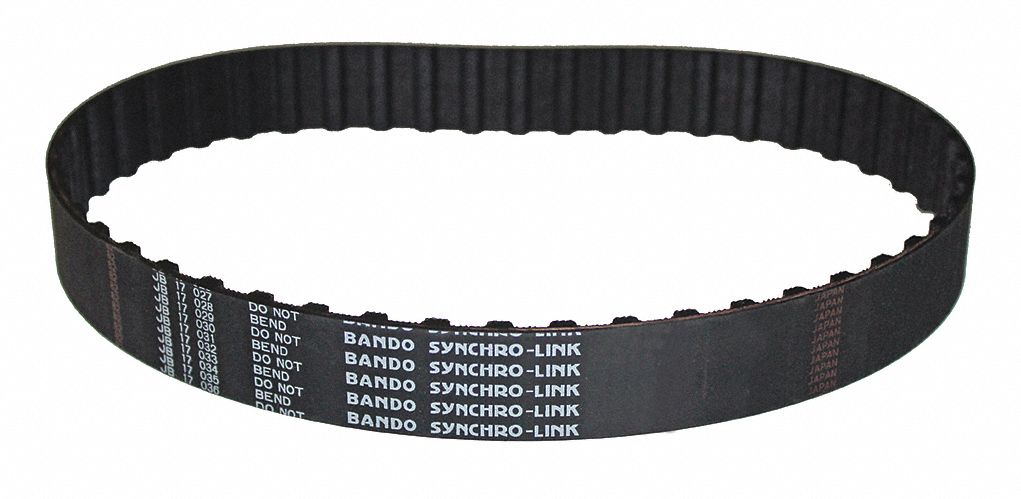

The BANDO Timing Belt: One Side is a closed-loop, trapezoidal-tooth timing belt from the Synchro-Link® series. It features a nylon coating and is identified by industry number 340H075 with a 0.5-inch pitch and 3/4-inch top width, having 68 teeth in neoprene construction (MPN 340H075G).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Synchro-Link®, 340H075, Neoprene |
| Brand | BANDO |
| Pitch | 0.5 in |
| Teeth | 68 |
| Top Wd | 3/4 in |
| Belt Series | Synchro-Link® |
| Length Type | Closed Loop |
| Belt Coating | Nylon |
| Tooth Profile | Trapezoidal |
| Industry Number | 340H075 |
| Manufacturer Part Number | 340H075G |
