B-line By Eaton 3G-OTH-04648 — Technical Specifications

Name: B-line By Eaton 3G-OTH-04648 Beam Cable Snap Clip: Steel, 5/32 in to 9/32 in, 0.444 in to 0.560 in (MPN BXM-1214). Key specifications — For Minimum Cable OD: 0.444 in; For Maximum Cable OD: 0.56 in; Wire Range: 0.444 in to 0.560 in; Beam Flange Thickness: 5/32 in to 9/32 in; Material: Steel; Finish: Zinc Plated; Color: Gray; Mounting Style: Snap On.
Brand: B-line By Eaton

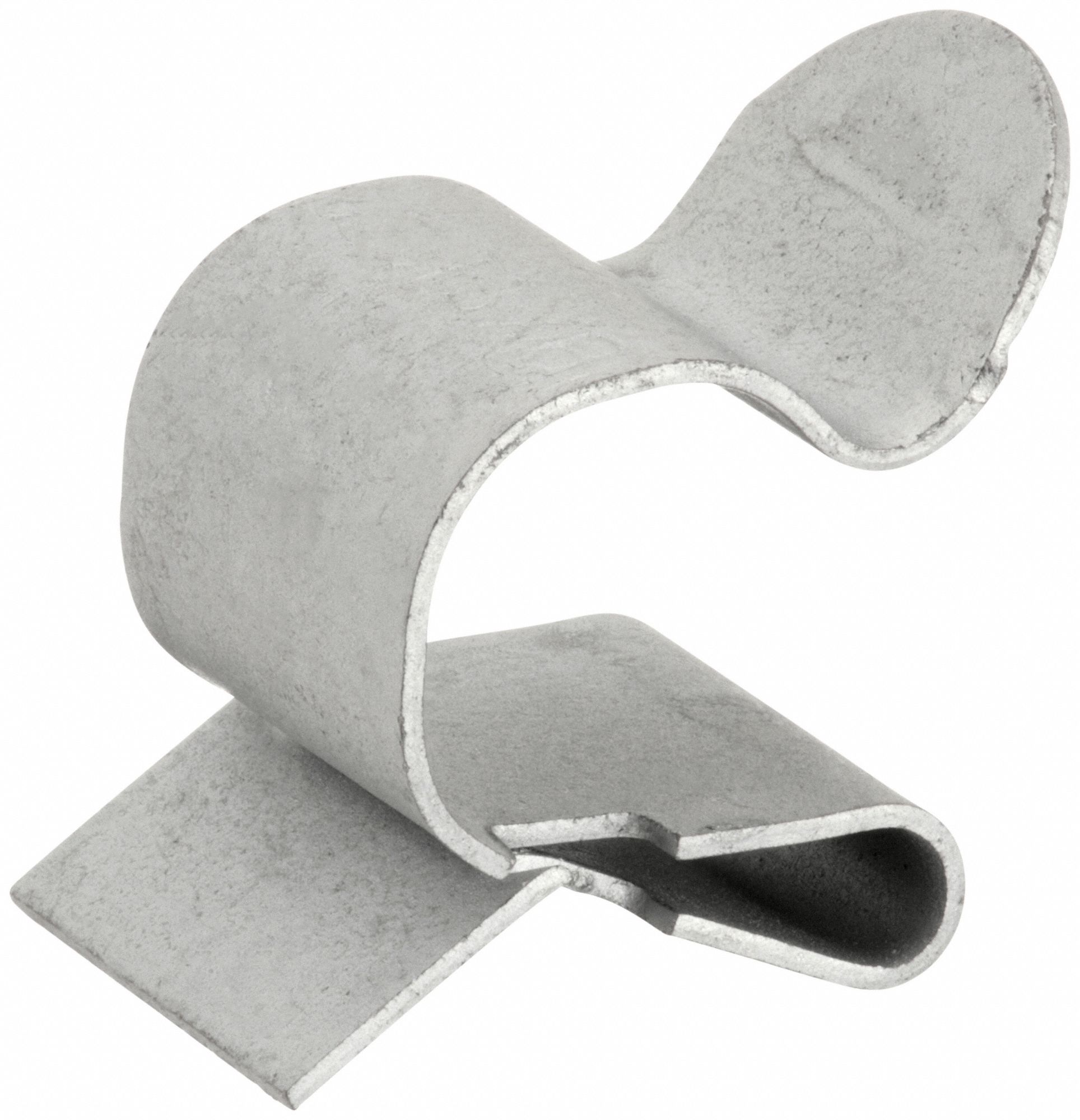

The B-LINE BY EATON Beam Cable Snap Clip (MPN BXM-1214) is a steel beam mount for conduit, pipe, and cable with a zinc-plated finish and gray color. It features a snap-on mounting style and accepts cables with a wire range of 0.444 in to 0.560 in, for beam flange thicknesses of 5/32 in to 9/32 in. The clip has overall dimensions of 1 in by 1 in by 1 in and is CE certified.

View Product & Quote

Technical Specifications

Parameter	Value
Color	Gray
Finish	Zinc Plated
UNSPSC	39121311
Material	Steel
Standards	CE
Wire Range	0.444 in to 0.560 in
Overall Width	1 in
Mounting Style	Snap On
Overall Height	1 in
Overall Length	1 in
Country Of Origin	France (subject to change)
For Maximum Cable OD	0.56 in
For Minimum Cable OD	0.444 in
Beam Flange Thickness	5/32 in to 9/32 in
Manufacturer Part Number	BXM-1214
Description/Special Features	Accepts 10/3, Romex With Ground

Physical & Shipping Data

Weight	0.005 kg
Country of Origin	France
