B-line By Eaton 3G-OTH-04754 — Technical Specifications

Name: B-line By Eaton 3G-OTH-04754 Hammer-On Beam Clamp: Steel, 5/16 in to 1/2 in, 1 in Overall Lg, 200 lb Load Capacity (MPN BE-5-8). Key specifications — Beam Flange Thickness: 5/16 in to 1/2 in; Compatible Pipe Size: 1/4 in; Load Capacity: 200 lb; Overall Length: 1 in; Overall Width: 1 in; Overall Height: 1 in; Material: Steel; Finish: Zinc Plated.
Brand: B-line By Eaton

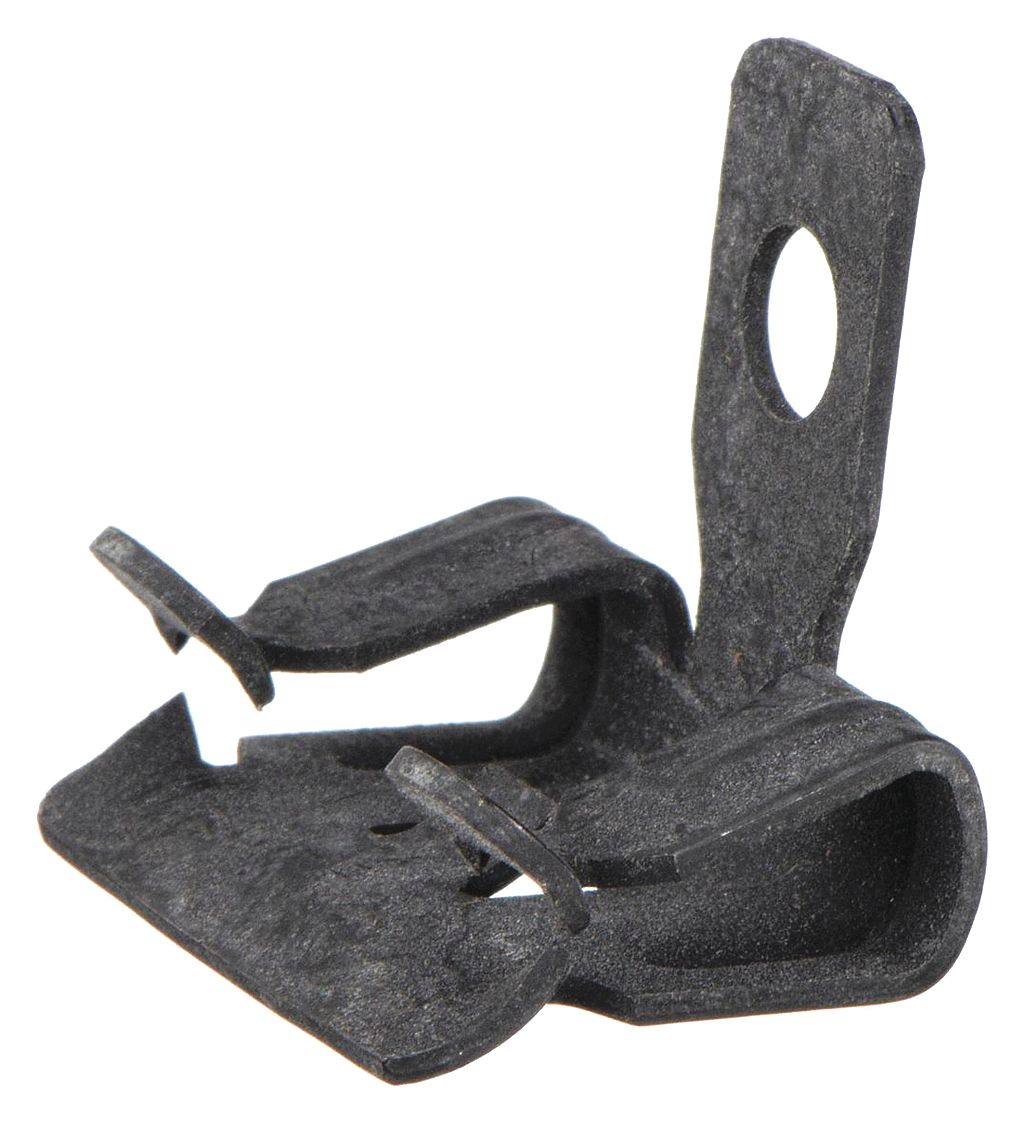

The B-Line by Eaton Hammer-On Beam Clamp is a steel beam, wire rod, and purlin clamp with a zinc-plated finish. It features a hammer-on mounting style, a 200 lb load capacity, and overall dimensions of 1 in by 1 in by 1 in. This UL/CUL-listed clamp is designed for use with beams having a flange thickness of 5/16 in to 1/2 in and is compatible with 1/4 in pipe.

View Product & Quote

Technical Specifications

Parameter	Value
Type	5/16 in to 1/2 in
Finish	Zinc Plated
UNSPSC	39121311
Material	Steel
Standards	UL/CUL
Overall Lg	1 in
For Use With	Beams
Load Capacity	200 lb
Overall Width	1 in
Mounting Style	Hammer On
Overall Height	1 in
Overall Length	1 in
Country Of Origin	USA (subject to change)
Compatible Pipe Size	1/4 in
Beam Flange Thickness	5/16 in to 1/2 in
Compatible Product Type	Pipe
Manufacturer Part Number	BE-5-8

Physical & Shipping Data

Weight	0.014 kg
Country of Origin	US
