B-line By Eaton 3G-OTH-04672 — Technical Specifications

Name: B-line By Eaton 3G-OTH-04672 Hammer-On Beam Clamp: Steel, 3/32 in to 9/64 in, 1 in Overall Lg, 160 lb Load Capacity (MPN BE-1-2). Key specifications — Beam Flange Thickness: 3/32 in to 9/64 in; Compatible Pipe Size: 1/4 in; Load Capacity: 160 lb; Overall Length: 1 in; Overall Width: 1 in; Overall Height: 1 in; Material: Steel; Finish: Zinc Plated.
Brand: B-line By Eaton

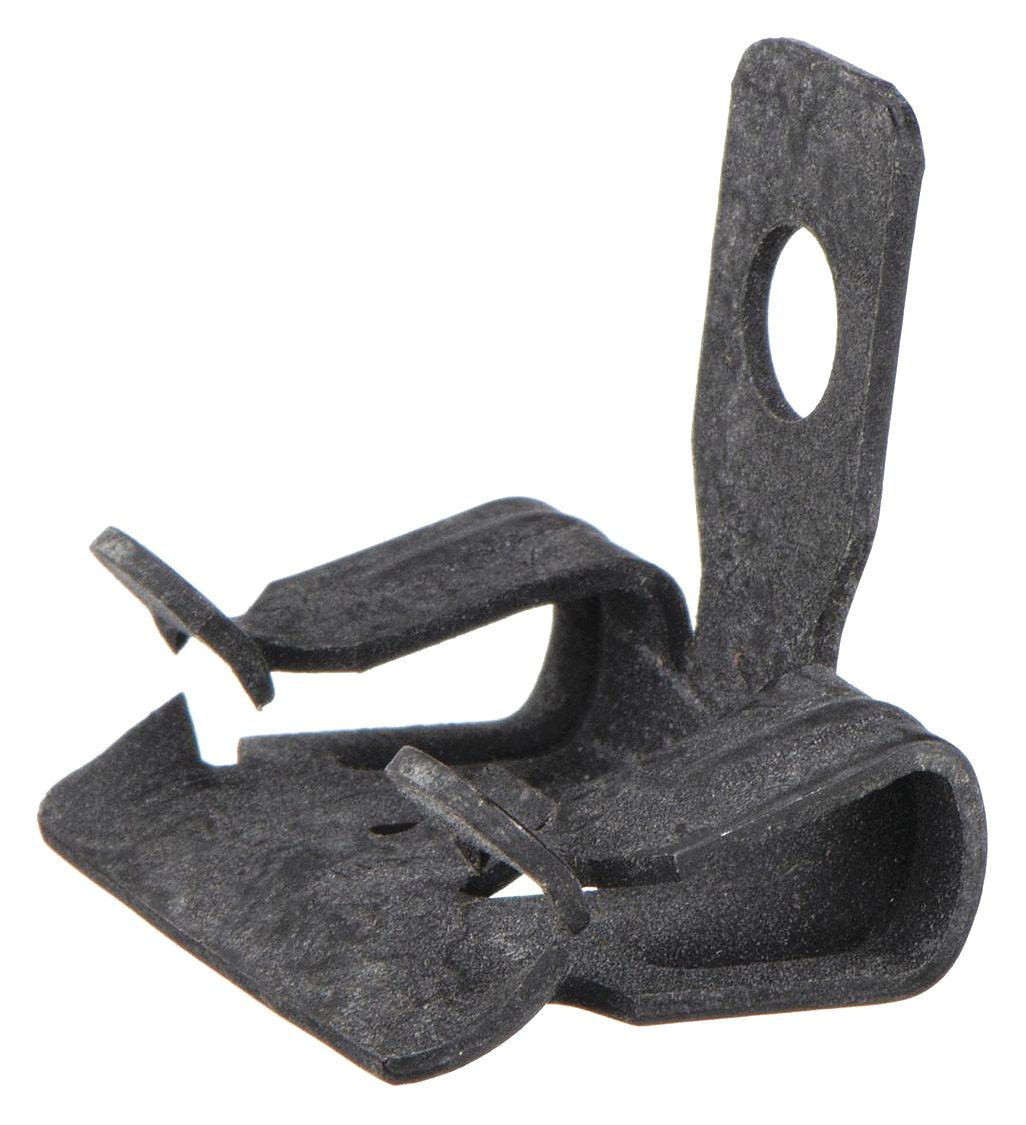

The B-Line by Eaton Hammer-On Beam Clamp is a steel beam, wire rod, and purlin clamp with a zinc-plated finish. It features a hammer-on mounting style and is designed for use with beams and 1/4 in pipe, supporting a load capacity of 160 lb. The clamp accommodates beam flange thicknesses from 3/32 in to 9/64 in and has overall dimensions of 1 in by 1 in by 1 in. It is UL/CUL listed.

View Product & Quote

Technical Specifications

Parameter	Value
Type	3/32 in to 9/64 in
Finish	Zinc Plated
UNSPSC	39121311
Material	Steel
Standards	UL/CUL
Overall Lg	1 in
For Use With	Beams
Load Capacity	160 lb
Overall Width	1 in
Mounting Style	Hammer On
Overall Height	1 in
Overall Length	1 in
Country Of Origin	USA (subject to change)
Compatible Pipe Size	1/4 in
Beam Flange Thickness	3/32 in to 9/64 in
Compatible Product Type	Pipe
Manufacturer Part Number	BE-1-2

Physical & Shipping Data

Weight	0.014 kg
Country of Origin	US
