B-line By Eaton 3G-OTH-04654 — Technical Specifications

Name: B-line By Eaton 3G-OTH-04654 Beam Clamp: Steel, 1/2 in, #10-24 Thread Size, 1 in Overall Lg, 100 lb Load Capacity (MPN BC1). Key specifications — Beam Flange Thickness: 1/2 in; Compatible Pipe Size: 1/2 in; Load Capacity: 100 lb; Overall Length: 1 in; Overall Width: 1 in; Overall Height: 1 in; Material: Steel; Finish: Zinc Plated.
Brand: B-line By Eaton

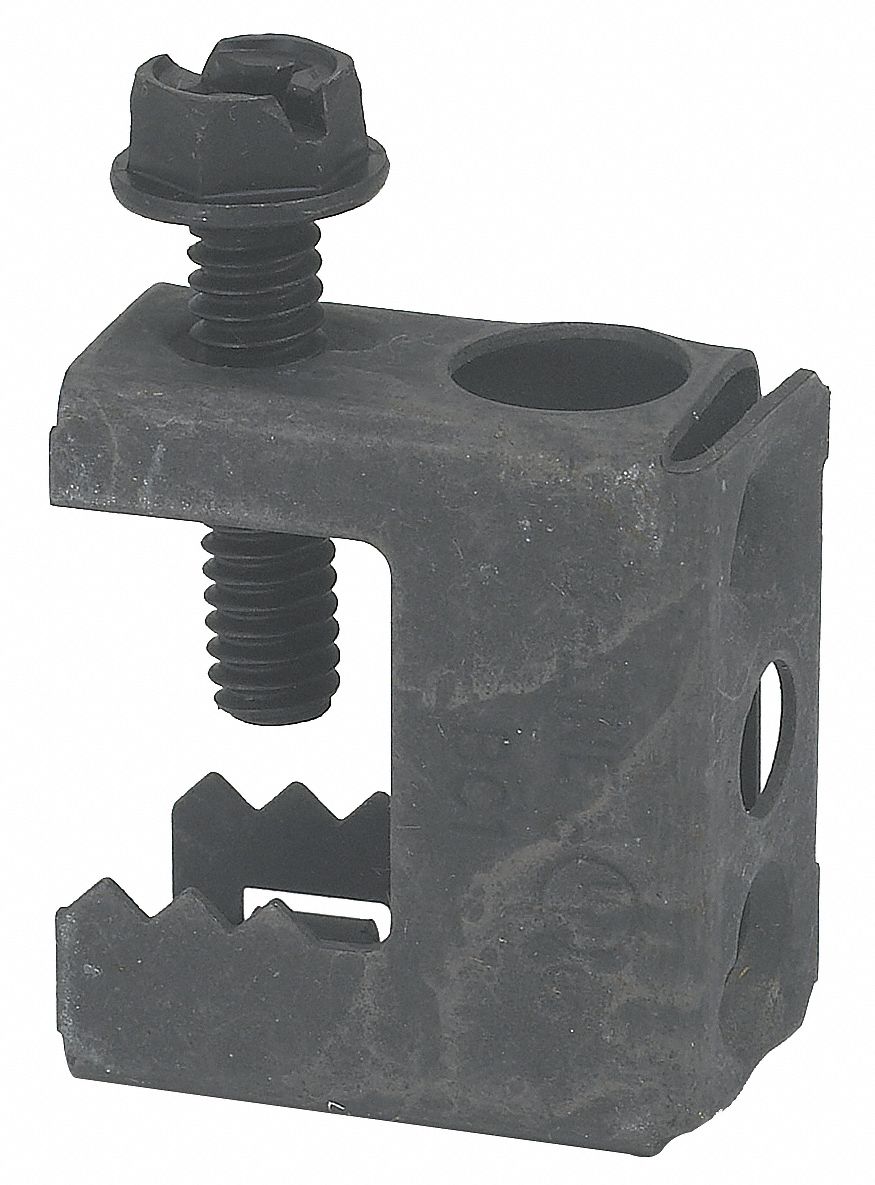

The B-LINE BY EATON Beam Clamp (SKU 4RHK8) is a steel beam, wire rod and purlin clamp with a zinc-plated finish. It features a #10-24 thread size, a 100 lb load capacity, and overall dimensions of 1 in by 1 in by 1 in. This clamp is designed for use with #10-24 electrical boxes and compatible with 1/2 in threaded rod and beam flanges up to 1/2 in thick. It is UL/CUL listed.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1/2 in, #10-24 Thread Size
Finish	Zinc Plated
UNSPSC	31162905
Material	Steel
Standards	UL/CUL
Overall Lg	1 in
Thread Size	#10-24
For Use With	#10-24 Electrical Boxes
Load Capacity	100 lb
Overall Width	1 in
Overall Height	1 in
Overall Length	1 in
Country Of Origin	USA (subject to change)
Compatible Pipe Size	1/2 in
Beam Flange Thickness	1/2 in
Compatible Product Type	Threaded Rod
Manufacturer Part Number	BC1

Physical & Shipping Data

Weight	0.023 kg
Country of Origin	US
