B&k Precision 3G-OTH-170083 — Technical Specifications

Name: B&k Precision 3G-OTH-170083 B&K PRECISION Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Fully Isolated, Auto (MPN 2515B). Key specifications — Power Source: AC Adapter; IP Rating: IP51; Manufacturer Part Number: 2515B; AC Magnitude Calculation: True RMS; Basic AC Current Accuracy: ±(1% +15 Digits); Basic AC Voltage Accuracy: +/-(1% +15 Digits); Basic DC Current Accuracy: ±(1% +15 Digits); Basic DC Voltage Accuracy: ±(1% +15 Digits).
Brand: B&k Precision

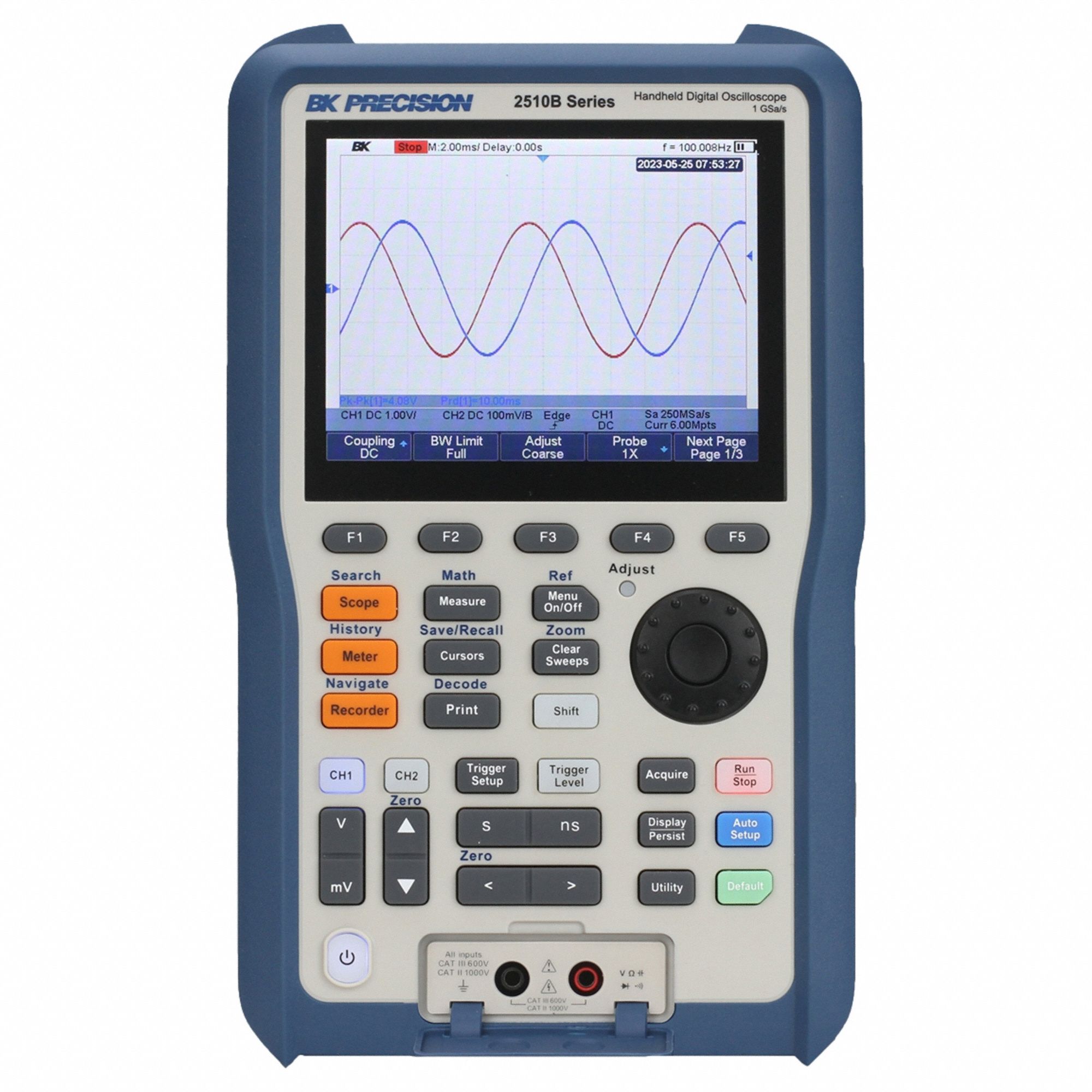

The B&K PRECISION 2515B is a portable handheld digital oscilloscope with a TFT LCD display, IP51 rating, and fully isolated channels. It features a 500 MSa/s sampling rate (non-interleaving mode), 12 Mpts/ch memory depth (half-channel interleaved), and True RMS AC measurement. The unit offers USB interface, data logging, and auto triggering, with basic accuracy of ±(1% +15 digits) for AC/DC voltage and current. Power is supplied via an AC adapter, and a carrying case is included.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Oscilloscopes, Fully Isolated, Auto
Brand	B&K PRECISION
Includes	Carrying Case
IP Rating	IP51
Interface	USB
Body Style	Handheld
Key Features	Data Logging
Memory Depth	12 Mpts/Ch (Half-Channel Interleaved)
Power Source	AC Adapter
Product Type	Portable Handheld Digital Oscilloscopes
Sampling Rate	500 MSa/s (Non-Interleaving Mode)
Triggering Mode	Auto
CAT Safety Rating	CAT III 600V
AC Magnitude Calculation	True RMS
Channel Source Isolation	Fully Isolated
Manufacturer Part Number	2515B
Basic AC Current Accuracy	±(1% +15 Digits)
Basic AC Voltage Accuracy	+/-(1% +15 Digits)
Basic DC Current Accuracy	±(1% +15 Digits)
Basic DC Voltage Accuracy	±(1% +15 Digits)
Digital Display Screen Type	TFT LCD
Calibration Certificate Type	Not Included
