B&k Precision 3G-OTH-170081 — Technical Specifications

Name: B&k Precision 3G-OTH-170081 B&K PRECISION Handheld Oscilloscope: Portable Handheld Digital Oscilloscopes, Non-Isolated, Auto (MPN 2511B). Key specifications — Power Source: AC Adapter; IP Rating: IP51; Manufacturer Part Number: 2511B; AC Magnitude Calculation: True RMS; Basic AC Current Accuracy: ±(1% +15 Digits); Basic AC Voltage Accuracy: +/-(1% +15 Digits); Basic DC Current Accuracy: ±(1% +15 Digits); Basic DC Voltage Accuracy: ±(1% +15 Digits).
Brand: B&k Precision

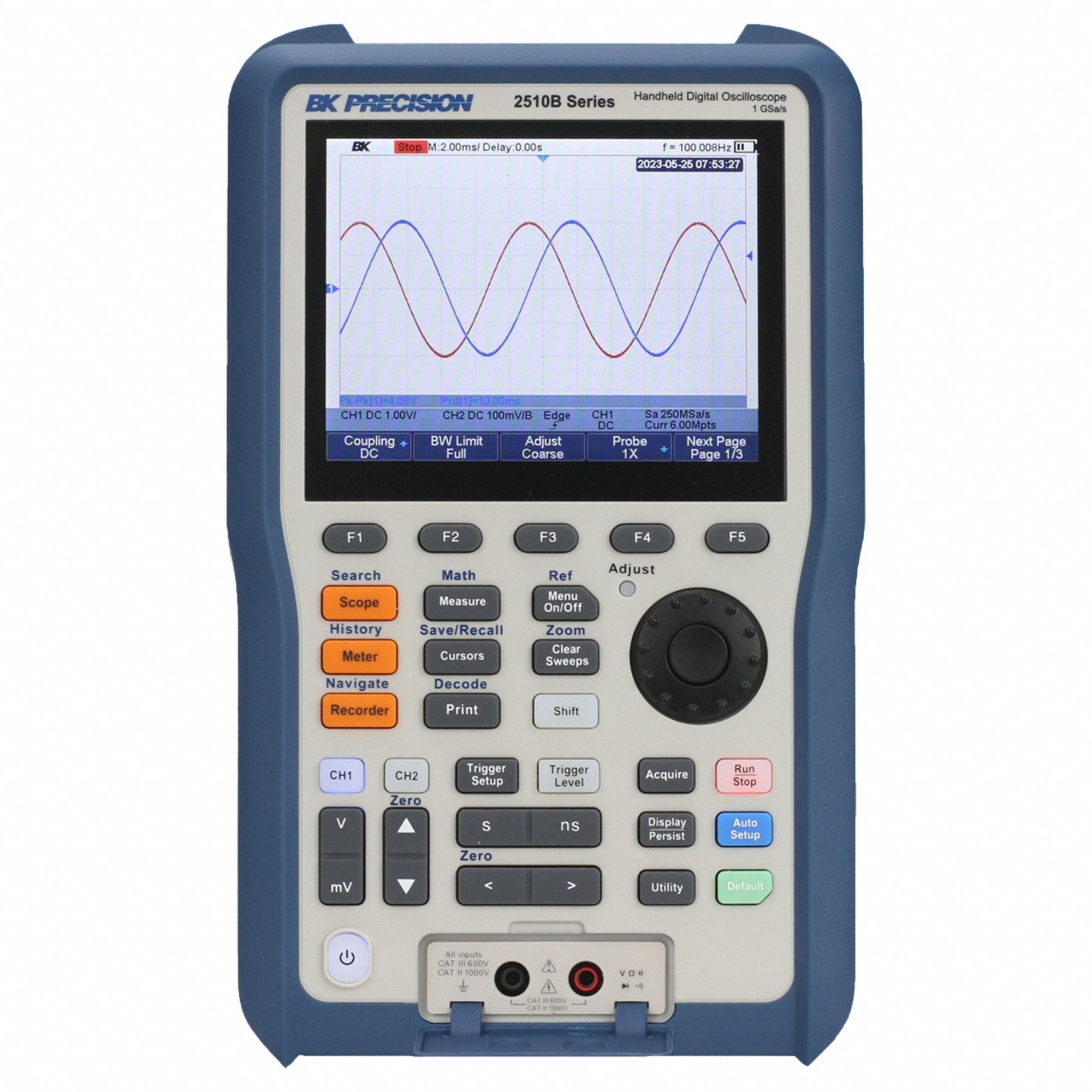

The B&K PRECISION 2511B is a portable handheld digital oscilloscope with a TFT LCD display, Auto triggering mode, and a sampling rate of 500 MSa/s (Non-Interleaving Mode). It features a memory depth of 12 Mpts/Ch (Half-Channel Interleaved), True RMS AC magnitude calculation, and an IP51 rating. The device is powered by an AC adapter, includes (2) passive probes, and offers USB interface and data logging. Basic accuracy for AC/DC voltage and current is ±(1% +15 Digits), with a CAT II 300V safety rating.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Oscilloscopes, Non-Isolated, Auto
Brand	B&K PRECISION
Includes	(2) Passive Probes
IP Rating	IP51
Interface	USB
Body Style	Handheld
Key Features	Data Logging
Memory Depth	12 Mpts/Ch (Half-Channel Interleaved)
Power Source	AC Adapter
Product Type	Portable Handheld Digital Oscilloscopes
Sampling Rate	500 MSa/s (Non-Interleaving Mode)
Triggering Mode	Auto
CAT Safety Rating	CAT II 300V
AC Magnitude Calculation	True RMS
Channel Source Isolation	Non-Isolated
Manufacturer Part Number	2511B
Basic AC Current Accuracy	±(1% +15 Digits)
Basic AC Voltage Accuracy	+/-(1% +15 Digits)
Basic DC Current Accuracy	±(1% +15 Digits)
Basic DC Voltage Accuracy	±(1% +15 Digits)
Digital Display Screen Type	TFT LCD
Calibration Certificate Type	Not Included
