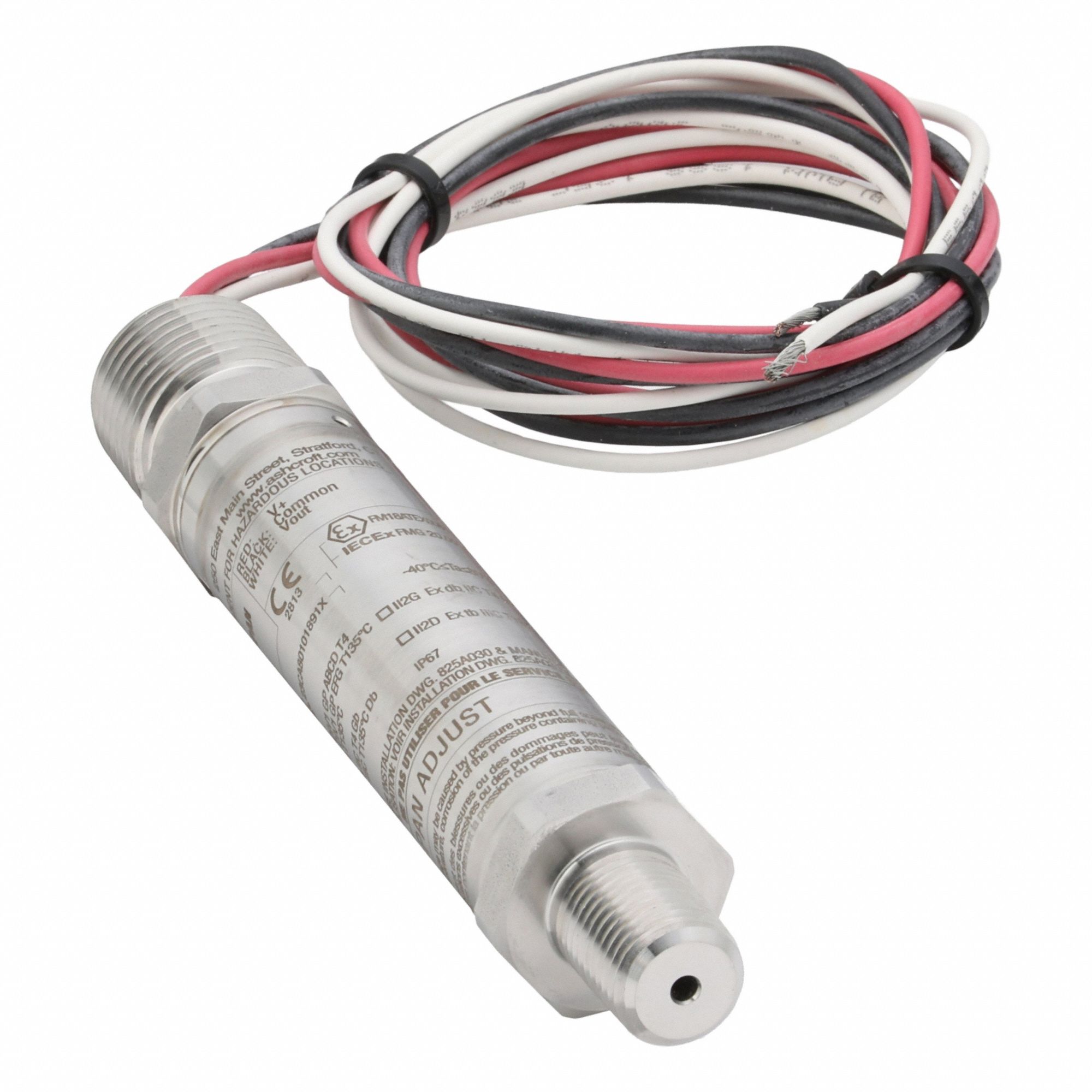

Ashcroft 3G-OTH-175349 — Technical Specifications
The ASHCROFT E2F Series Pressure Transmitter (5 psi) is an explosion-proof gauge pressure transmitter with a stainless steel housing, IP66 and NEMA 4X ratings, and a 1/2 in NPT conduit with cable electrical connection. It provides a 1 to 5V DC output, features ±0.50% accuracy, and is rated for Class II, Div 1, Group E, F, G hazardous locations. The transmitter offers 3x overpressure and 5x burst pressure protection, with a 1/2 in NPT process connection.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NM0215CFX03F5# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
