Ashcroft 3G-OTH-175367 — Technical Specifications

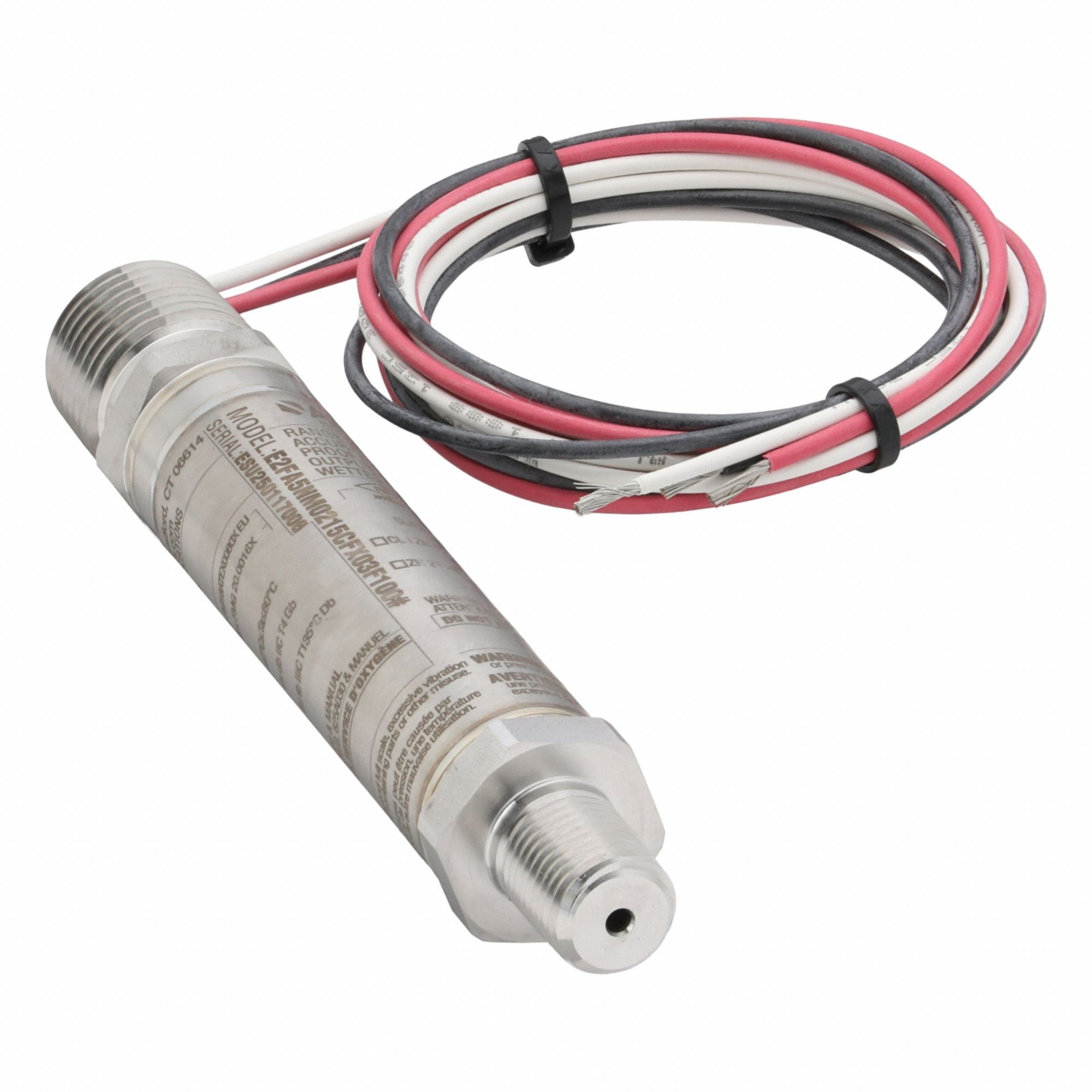

The ASHCROFT E2F Series Pressure Transmitter (100 psi) is an explosion-proof gauge pressure transmitter with a 1 to 5V DC output. It features a stainless steel housing, IP66 and NEMA 4X ratings, and a 1/2 in NPT conduit electrical connection with cable. The transmitter offers ±0.50% accuracy, 2x overpressure and 8x burst pressure ratings, and is rated Class II, Div 1, Group E, F, G for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0215CFX03F100# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
