Ashcroft 3G-OTH-175405 — Technical Specifications

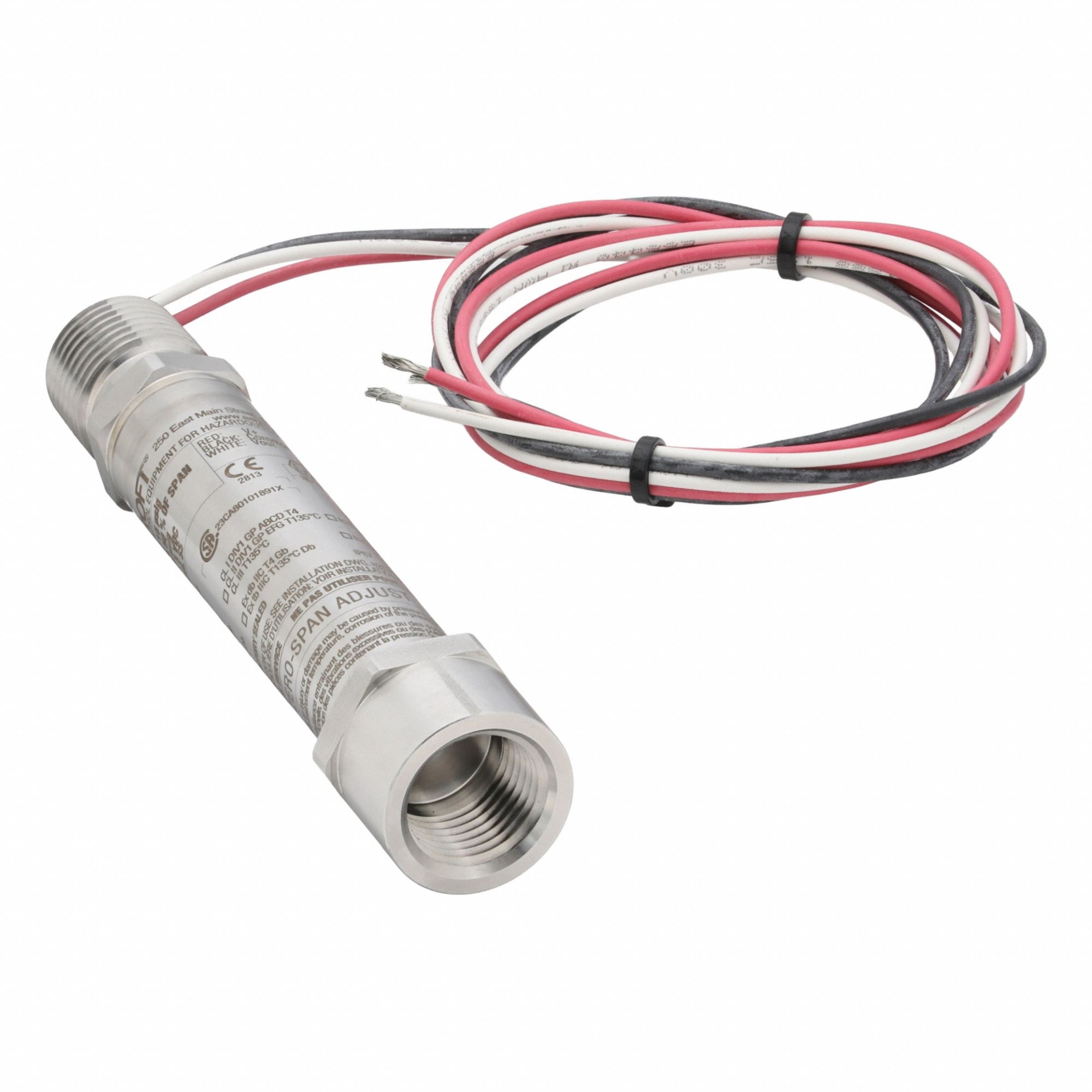

The ASHCROFT E2F Series Pressure Transmitter (15 psi) is an explosion-proof gauge pressure transmitter with a stainless steel housing, IP66 and NEMA 4X ratings, and a 1/2 in NPT conduit connection with cable. It offers a 1 to 5V DC output, ±0.50% accuracy, 2x overpressure, 5x burst pressure, and is vibration resistant with Class I, Div 1, Group A, B, C, D safety rating.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2x |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NF0415CFX03F15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
