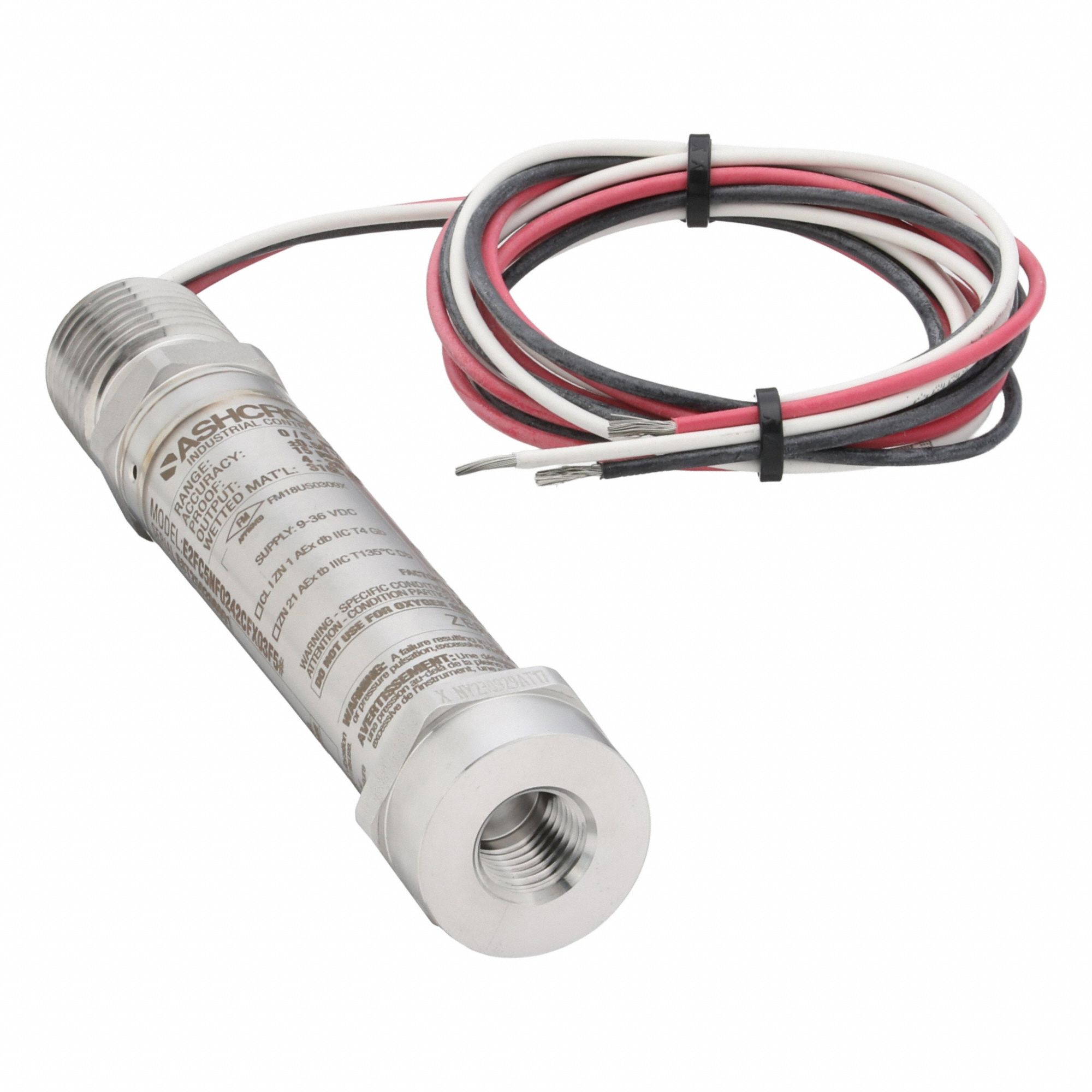

Ashcroft 3G-OTH-175522 — Technical Specifications
The ASHCROFT E2F Series Pressure Transmitter (5 psi) is an explosion-proof gauge pressure transmitter with a 4 to 20mA output, ±0.50% accuracy, and a stainless steel housing rated IP66 and NEMA 4X. It features a 1/2 in NPT conduit connection with cable, supports overpressure up to 3x and burst pressure up to 5x, and carries a Class I, Div 1, Group A, B, C, D safety rating. This shock-resistant transmitter is not specified as intrinsically safe and does not include a NIST-traceable calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3x |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NF0242CFX03F5# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
