Ashcroft 3G-OTH-175443 — Technical Specifications

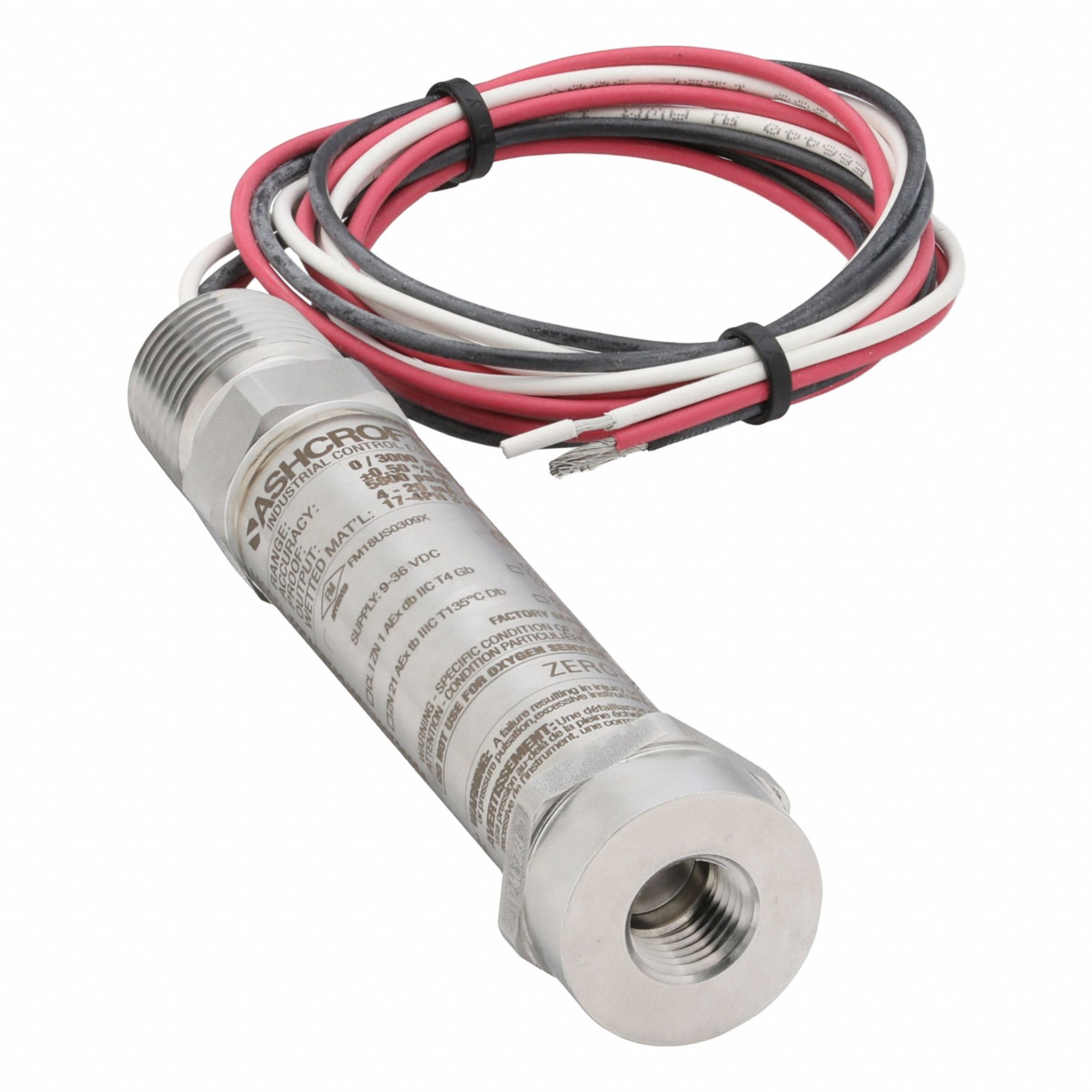

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NF0242CFX03F3000#) is an explosion-proof gauge pressure transmitter with a 3,000 psi range and a 4 to 20mA output. It features a stainless steel housing, IP66 and NEMA 4X ratings, a 1/2 in NPT conduit electrical connection with cable, and an NPT process connection. The transmitter offers ±0.50% accuracy, 1.9x overpressure and 5x burst pressure ratings, and is rated Class II, Div 1, Group E, F, G for safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.9x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0242CFX03F3000# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
