Ashcroft 3G-OTH-176511 — Technical Specifications

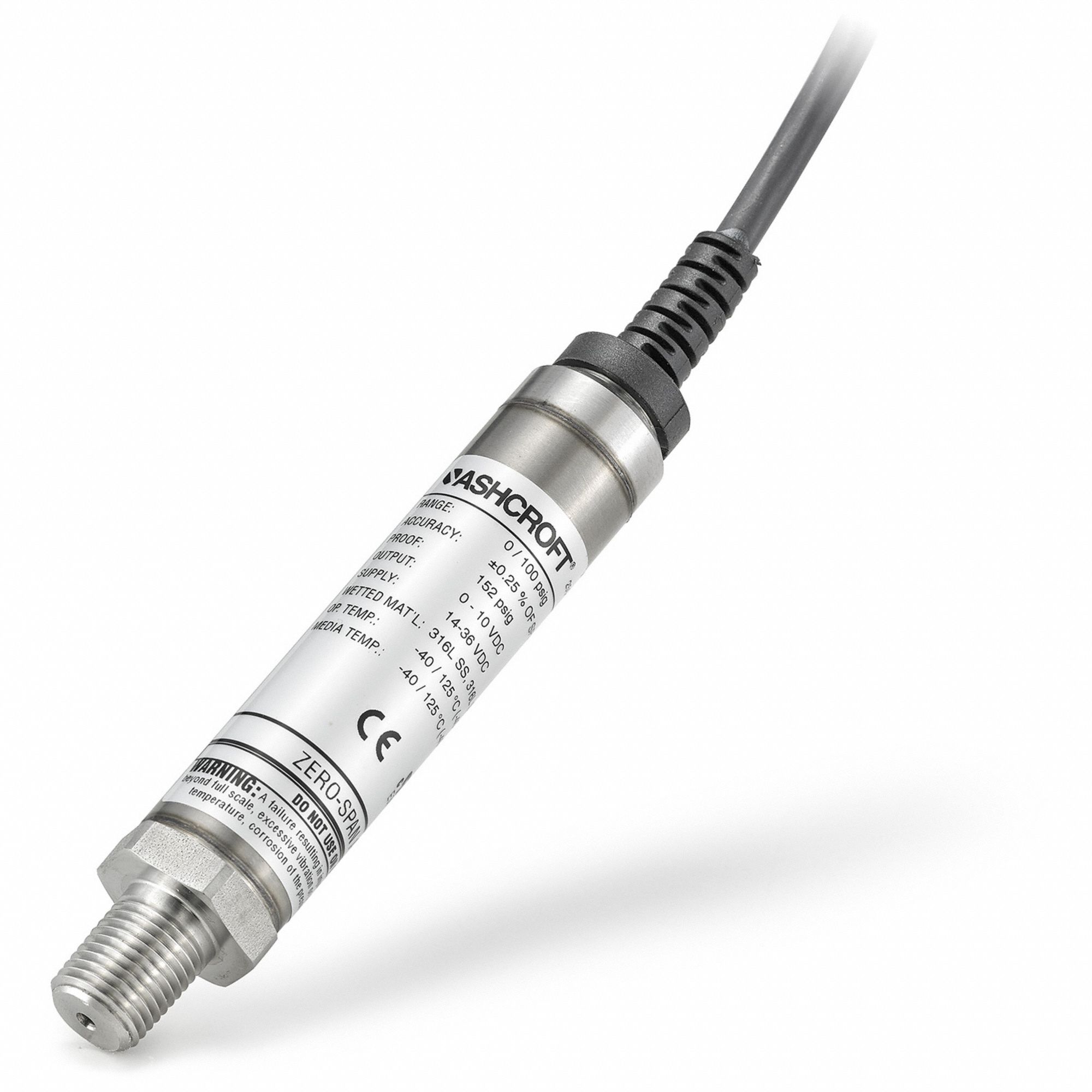

The ASHCROFT E2G Series Pressure Transmitter (SKU 797RW7) is a cable-style pressure transmitter with a 0 psi to 1,500 psi range and a 4 to 20mA DC output. It features ±0.25% accuracy, an IP67 and NEMA 4X rating, a stainless steel housing, and a 1/2 in Male NPT process connection. The transmitter offers an overpressure of 1.2x range and a burst pressure of 5x range, and includes a NIST-traceable calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | Cable, IP67 /4X |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | E2G |
| Accuracy | ±0.25% |
| Male NPT | 1/2 in |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Overpressure | 1.2x Range |
| Burst Pressure | 5x Range |
| Housing Material | Stainless Steel |
| Electrical Connections | Cable |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2GB3CM0442FCX03F1500# |
| Process Connection Gender | Male |
| Calibration Certificate Included | NIST-Traceable Calibration Certificate Included |
