Ashcroft 3G-OTH-176502 — Technical Specifications

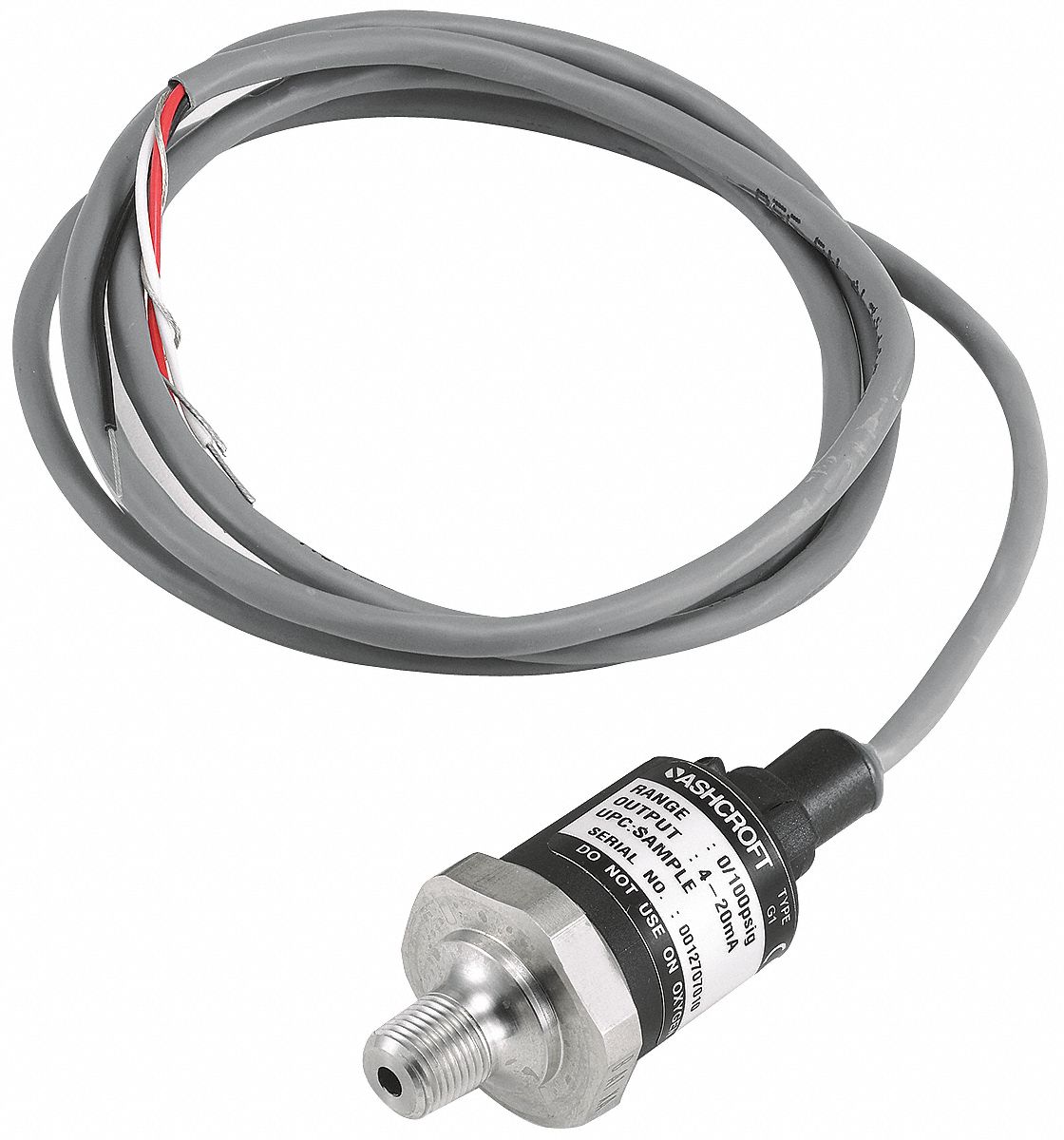

The ASHCROFT G2 Series Pressure Transmitter (SKU 5LTG6) is a pressure transmitter with cable and wire leads, offering a 0 psi to 7,500 psi range and a 1 to 5V DC output. It features ±0.5% accuracy, an IP67 and NEMA 4X rating, a nylon housing, and a 1/8 in male NPT process connection. Overpressure capability is 1.5x range, with burst pressure at 5x range; no NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 1 to 5V |
| Type | Cable & Wire Leads, IP67 /4X |
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | G2 |
| Accuracy | ±0.5% |
| Male NPT | 1/8 in |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Overpressure | 1.5x Range |
| Burst Pressure | 5x Range |
| Housing Material | Nylon |
| Process Connection Type | NPT |
| Manufacturer Part Number | G17M0115F27500# |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
